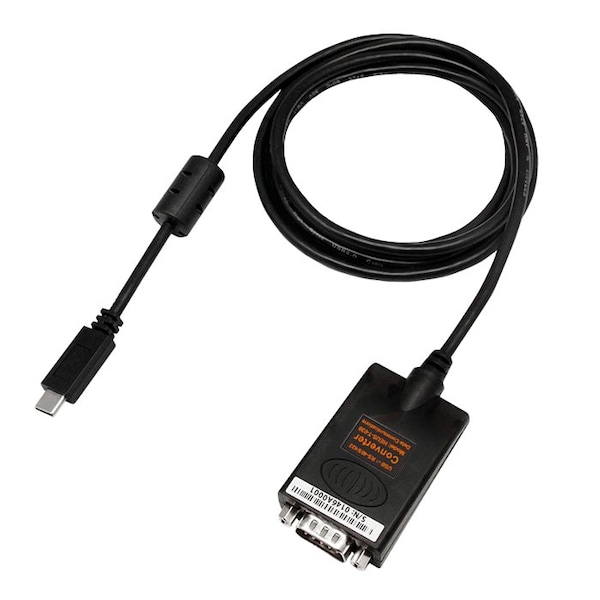

USB TYPE-C to RS-485/422 Converter
Mfr # CTUS-039
Zoro # G023786100
product price:Â $20.95
/eaKey Features
Working Mode
Asynchronous operation, point-to-point or multi-point, 2-wire half-duplex, 4-wire full-duplex
Connector of USB
USB Type C Male
Transmission Distance
RS-485/422 1200m (9600bps), USB Port Max. 5 Meters
Working Temperature
-40°C to 85°C
Transmission Media
Twisted Pair or Shielded Cable
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
CTUS-039
Zoro #
G023786100
UPC #
-
Country of Origin
China
Details
Working Mode
Asynchronous operation, point-to-point or multi-point, 2-wire half-duplex, 4-wire full-duplex
Connector of USB
USB Type C Male
Transmission Distance
RS-485/422 1200m (9600bps), USB Port Max. 5 Meters
Working Temperature
-40°C to 85°C
Transmission Media
Twisted Pair or Shielded Cable
Baud Rate
300-921600bps
Load Capacity
Point-to-multipoint Communication Mode, Allowing to connetct up to 32 Sets of RS-422 or RS-485 Port Devices
USB Signals
VCC, DATA-, DATA+, GND, FG
Supporting System
Win2000/2003/2008/2012/XP/Vista/7/8/8.1/10/CE/Mac/Linux
Standards
USB1.0, 1.1 and 2.0 Standards and EIA RS-485 and RS-422 Standard
Relative Humidity
5% to 95 %
RS-485 Signals
T/R+, T/R-, GND
Interface Protection
600W Surge Protection, ±15KV Electrostatic Protection
RS-422 Signals
T/R+, T/R-, RXD+, RXD-, GND
Type of Serial Ports
RS-485 and RS-482
Connector of RS-485 and RS-422
5-pin Terminal Block
Number of Serial Ports
1
Description
Plastic with Bolts, 1.5m, USB TYPE-C to RS-485/422 Converter, Baud Rate: 300-921,600bps, Load Capcity: Supports Point to Multi-point, Allows to Connect up to 32 Sets RS-422 or RS-485 Device, Load Capcity: Supports Point to Multi-point, Allows to Connect up to 32 Sets RS-422 or RS-485 Device, Transmission Distance: RS-485/422 1,200m(9600bps), USB Max. 5m, Working Temperature: -40 DegC to 85 DegC
