Shop HOBART WELDING PRODUCTS

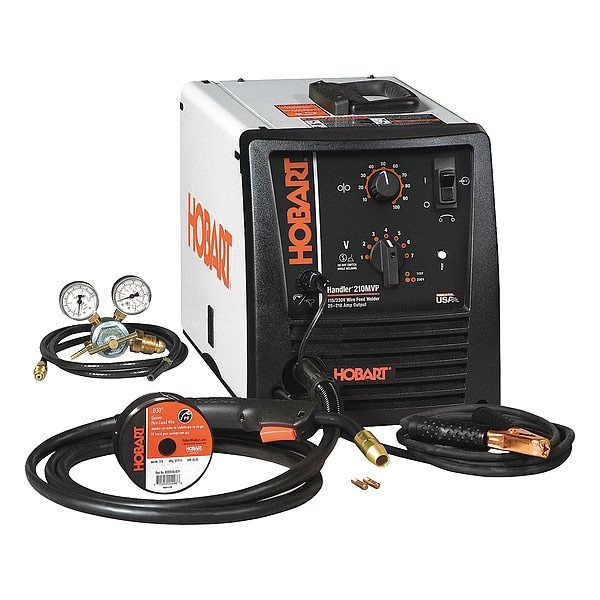

MIG Welder, Handler 210MVP, Single-Phase, 110/115/120V AC, 220/230/240V AC, 20%/30%

  • Mfr # 500553

  • Zoro # G4294577

product price:
$
1,467.99
/ea
Free Shipping & Returns

Key Features

Series
Handler 210MVP
Input Voltage
110/115/120/220/230/240V AC
Welded Material
Mild Steel, Stainless Steel, Aluminum (with Optional Spool Gun)
Mild Steel - Material Thickness
24 ga to 3/8 in
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
500553
Zoro #
G4294577
UPC #
715959556491
Country of Origin
United States

Dimensions

Mild Steel - Material Thickness
24 ga to 3/8 in
Aluminum - Material Thickness
18 ga to 1/4 in
Overall Height
12.38 in
Stainless Steel - Material Thickness
18 ga to 1/4 in
Wire Size
0.023 in to 0.045 in
Overall Depth
19.5 in
Overall Width
10.63 in
For Maximum Material Thickness
3/8 in (Mild Steel)
Maximum Wire Diameter
0.035 in (Solid), 0.045 in (Flux-Cored)
Minimum Wire Diameter
0.024 in
For Minimum Material Thickness
24 ga (Mild Steel)
Wire Diameter Solid - Maximum
0.035 in
For Steel Thickness - Minimum
24 ga
For Steel Thickness - Maximum
3/8 in
Wire Diameter Flux-Cored - Maximum
0.045 in

Details

Item
MIG Welder
Series
Handler 210MVP
Input Voltage
110/115/120/220/230/240V AC
Welded Material
Mild Steel, Stainless Steel, Aluminum (with Optional Spool Gun)
Phase
Single
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW)
Hz
60
Portability
Handheld Portable
Standards
CSA Certified
Output Range
25 to 140A DC/25 to 210A DC
Includes
0.030 in. Contact Tips, 10 ft. Work Cable with Clamp, Comfortable 10 ft. HR-100 Gun, Dual-Gauge Regulator with Gas Hose, Quick Select Drive Roll for 0.024 in. or 0.030/0.035 in. Wire, Sample Spool of 0.030 in. Self-Shielding Flux-Cored Wire
Features
Dual-Voltage Input with the MVP Plug
Rated Output
90A @ 19V DC/150A @ 23V DC
Input Amps
20/24
Application
Maintenance, Construction, Auto Body, Farm/Ranch, Boat/Marine, Home
Duty Cycle
20%/30%
Weight
79 lb
Plug Type
5-15P, 6-50P
MIG Welding Maximum Output Current
210 A
Maximum Wire Feed Speed
770 in/min
MIG Welding Minimum Output Current
25 A
Input Frequency
60 Hz
Color
White
Amperage Range
25 to 210 A
MIG Welding Output @ Duty Cycle
150 A @ 23 V, 30% (230 V), 90 A @ 19 V, 20% (115 V)
Welding Mode
CV
Minimum Wire Feed Speed
40 in/min
Polarity
DC
For Wire Type
Flux-Cored, Solid
Power Cord Included
Yes
For Material Type
Steel, Stainless Steel
Model
500553
Process
Flux-Cored Welding (FCAW), MIG Welding (GMAW)
Welding Power Source Type
CV
Amperage MIG - Minimum
25 A
Amperage MIG - Maximum
210 A
Rated Output @ Duty Cycle (MIG)
150 A @ 23 V, 30% (230 V), 90 A @ 19 V, 20% (115 V)

Description

MIG Welder, Series Handler 210MVP, Input Voltage 110/115/120/220/230/240V AC, Phase Single, Welding Mode CV, Polarity DC, Input Frequency 60 Hz, Welding Processes Flux-Cored Welding (FCAW), MIG Welding (GMAW), For Wire Type Flux-Cored, Solid, Maximum Wire Diameter 0.035 in (Solid), 0.045 in (Flux-Cored), Maximum Wire Feed Speed 770 in/min, Remote Connection Type Not Applicable, Model 500553, MIG Welding Output @ Duty Cycle 150 A @ 23 V, 30 Percent (230 V), 90 A @ 19 V, 20 Percent (115 V)
