Shop MILLER ELECTRIC

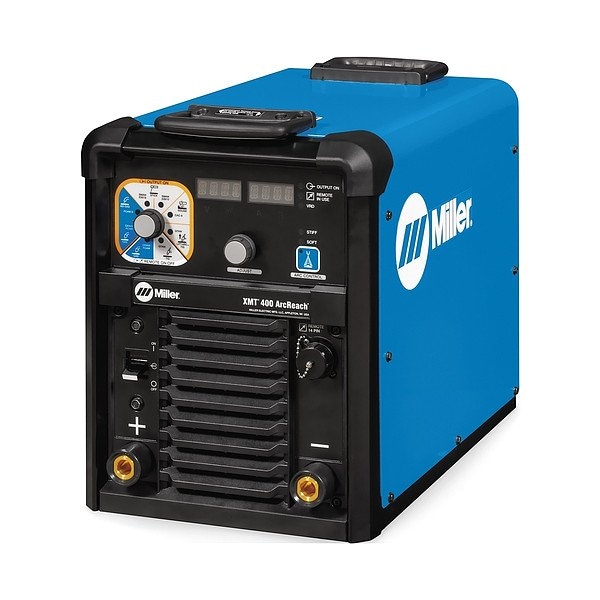

XMT(R) 400 ArcReach(R), XMT, Phase Single/Three-Phase , IncludesMachine Only

  • Mfr # 907865004

  • Zoro # G016520834

product price:
$
11,158.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Series
XMT
Phase
Single/Three
Input Voltage
208/220/230/240/380/400/440/460/480/575/600V AC
Includes
Machine Only
Amperage Range
15 to 425 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
907865004
Zoro #
G016520834
UPC #
715959717076
Country of Origin
United States

Dimensions

Overall Depth
20.25 in
Overall Width
12.75 in
Overall Height
17.25 in
For Maximum Material Thickness
5/16 in
Wire Diameter Solid - Minimum
0.024 in
Wire Diameter Flux-Cored - Maximum
0.035 in
For Steel Thickness - Minimum
24 ga
Wire Diameter Flux-Cored - Minimum
0.03 in
For Aluminum Thickness - Minimum
18 ga
For Steel Thickness - Maximum
3/8 in
Wire Diameter Aluminum - Minimum
0.35 in
For Aluminum Thickness - Maximum
3/8 in
For Stainless Steel Thickness - Maximum
3/8 in
Wire Diameter Solid - Maximum
0.035 in
For Stainless Steel Thickness - Minimum
26 ga
Wire Diameter Aluminum - Maximum
0.4 in

Details

Item
XMT(R) 400 ArcReach(R)
Series
XMT
Phase
Single/Three
Input Voltage
208/220/230/240/380/400/440/460/480/575/600V AC
Includes
Machine Only
Amperage Range
15 to 425 A
Application
Construction & Fabrication, Heavy Equipment, Shipbuilding
Features
ArcReach(R), Auto-Line(TM), Cable Length Compensation, Adjust While Welding, Control Panel Lockout
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Flux Cored (FCAW), MIG Welding (GMAW), MultiprocessPulsed MIG (GMAW-P), Regulated Metal Deposition (RMD), Stick Welding (SMAW), TIG Welding (GTAW)
Weight
75 lb
Polarity
DC
For Material Type
Aluminum, Specialty Metals, Stainless Steel, Steel
Welding Mode
CC/CV
MIG Welding Minimum Output Current
15 A
Open Circuit Voltage
91 V DC
Color
Blue/Black
Input Frequency
50/60 Hz
TIG Welding Maximum Output Current
425 A
Stick Welding Minimum Output Current
15 A
Model
XMT 400 ArcReach Dinse
MIG Welding Maximum Output Current
425 A
Enhanced Process
Pulsed MIG (GMAW-P), RMD
Stick Welding Maximum Output Current
425 A
TIG Welding Minimum Output Current
15 A
Plug Type
Bare Leads
Amperage Stick - Minimum
15 A
Amperage MIG - Minimum
15 A
Amperage Stick - Maximum
400 A
Process
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Pulsed MIG Welding (GMAW-P), Regulated Metal Deposition (RMD), Stick Welding (SMAW), TIG Welding (GTAW)
TIG Arc Start Feature
Lift Arc Start
Remote Connection Type
14-Pin (Miller)
Amperage TIG - Maximum
425 A
Welding Power Source Type
CC/CV
Amperage TIG - Minimum
15 A
Amperage MIG - Maximum
425 A
Maximum Wire Feed Speed
19.8 m/min
Rated Output @ Duty Cycle (TIG)
350 A @ 24 V, 100%, 400 A @ 26 V, 60%, 425 A @ 27 V, 30%
Rated Output @ Duty Cycle (Stick)
350 A @ 34 V, 100%, 400 A @ 36 V, 60%
Minimum Wire Feed Speed
1.3 m/min
Rated Output @ Duty Cycle (MIG)
350 A @ 31.5 V, 100%, 400 A @ 34 V, 60%, 425 A @ 35.3 V, 30%

Description

XMT(R) 400 ArcReach(R), Series XMT 400 ArcReach, Input Voltage 208/220/230/240/380/400/440/460/480/575/600V AC, Phase Single/Three, Welding Mode CC/CV, Polarity DC, Input Frequency 50/60 Hz, Welding Processes Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Regulated Metal Deposition (RMD), Stick Welding (SMAW), TIG Welding (GTAW), Stick Welding Maximum Output Current 400 A, TIG Welding Maximum Output Current 425 A

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
