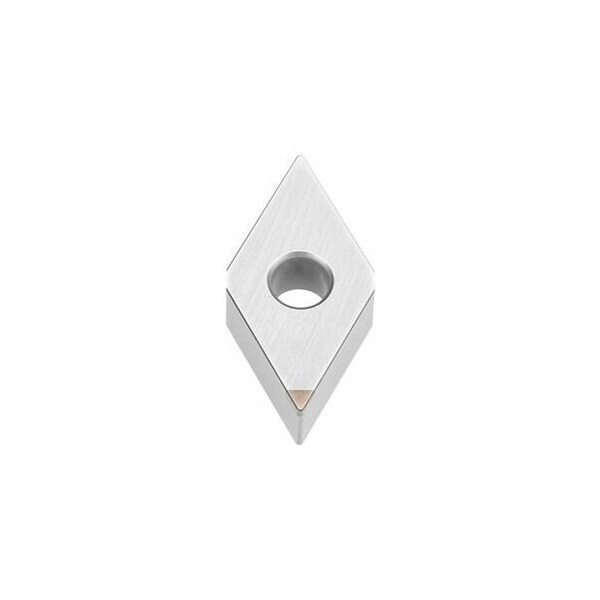

CBN Turning Insert, Diamond, DNMA443 / DNMA150612, for Cast Iron
Mfr # 255588 M
Zoro # G814824134
product price: $34.65
/eaKey Features
Feed
0.1 mm/rev.
Insert Style
DNMA
Depth of Cut max
0.5 mm
Inscribed Circle
4
Depth of Cut
0.1 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
255588 M
Zoro #
G814824134
UPC #
-
Country of Origin
Germany
Dimensions
Depth of Cut max
0.5 mm
Depth of Cut
0.1 mm
Insert Size
443
Corner Radius
1.2 mm
Insert Thickness
4
Details
Feed
0.1 mm/rev.
Insert Style
DNMA
Inscribed Circle
4
Cutting speed
80 m/min
Insert Shape
Diamond
Type
Indexable insert for turning
Number of Inserts
1
Insert Application
Finishing
Grade
BUX220
ISO Number
DNMA 150612
Insert Material
CBN
Description
Disposable insert. Single cutting edge. Note: Further indexable insert shapes, sizes and corner radii available on request. Grade: BUX220 Cutting edge M Cutting depth ap: 0.1 0.5 mm Feed f: 0.1 0.2 mm/rev. Cutting speed vc main application: 80 200 m/min
