  15. 1NC/1NO Safety Interlock Switch Nema 1, 12, 13 IP 66

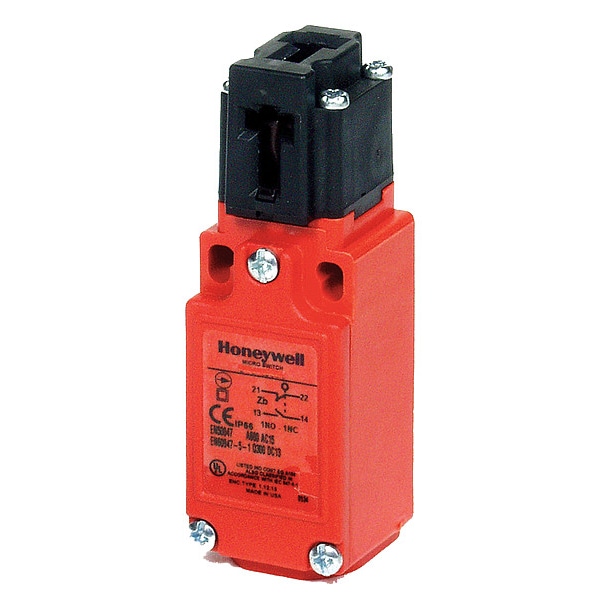

Honeywell 1NC/1NO Safety Interlock Switch Nema 1, 12, 13 IP 66 GKEA01L - main

1NC/1NO Safety Interlock Switch Nema 1, 12, 13 IP 66

  • Mfr # GKEA01L

  • Zoro # G3969226

product price: $90.99
/ea
Free Shipping & Returns

Key Features

Style
90 Degrees or Straight Key Actuated, Front and Top Opening, Rotating Head
Series
GKE
AC Contact Rating
10 A
DC Contact Rating
0.1 to 10 A @ 250 V
Contact Form
1NO/1NC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GKEA01L
Zoro #
G3969226
UPC #
-
Country of Origin
China

Dimensions

Height
3.61 in
Width
1.2 in
Depth
1.2 in
Conduit Size
1/2 in NPT
Overall Depth
1.3 in
Overall Width
1.2 in
Overall Height
3.61 in

Details

Item
Safety Interlock Switch
Style
90 Degrees or Straight Key Actuated, Front and Top Opening, Rotating Head
Series
GKE
AC Contact Rating
10 A
DC Contact Rating
0.1 to 10 A @ 250 V
Contact Form
1NO/1NC
Connection Type
1/2 in NPT Conduit
IP Rating
IP66, IP67
Operating Temp. Range
-13 Degrees to 185 Degrees F
Description/Special Features
0.5 lb Extraction Force, Enclosure Double Insulated to IEC 536 Class II, Mechanical Life 1,000,000 Operations, Shock 50G per IEC 68-2-27, Vibration 10G per 68-2-6
Standards
CCC, CE, cULus, SIL3
NEMA Rating
1, 12, 13
Operating Force
5 lb
Contact Material
Silver
Head Material
Thermoplastic
Body Material
Plastic
Electrical Connection
1/2 in NPT Conduit
Features
Red Switch Body
Operating Temperature - Minimum
-13 Degrees F
Actuating Key Type
90 Degrees , Flat
Operating Temperature - Maximum
185 Degrees F
NEMA Enclosure Rating
1, 12, 13, 4, 4X
Hazardous Location Specification
Not Rated
Includes Actuating Key
No Actuating Key Included
Key Hole Location
Front, Top
Actuator Material
Stainless Steel
Circuitry Action
Snap Action

Description

Safety Interlock Switch, 90 Degrees or Straight Key Actuated, Front and Top Opening, Rotating Head, Contact Form 1NO/1NC, Connection Type 1/2 in NPT Conduit, AC Contact Rating 10 A, Series GKE, DC Contact Rating 0.1 to 10 A @ 250 V, Solenoid Voltage Not Applicable, Height 3.61 in, Width 1.2 in, Depth 1.2 in, NEMA Rating 1, 12, 13, IP Rating IP66, IP67, Operating Temp. Range -13 Degrees to 185 Degrees F, Contact Material Silver, Conduit Size 1/2 in NPT, Body Material Plastic
