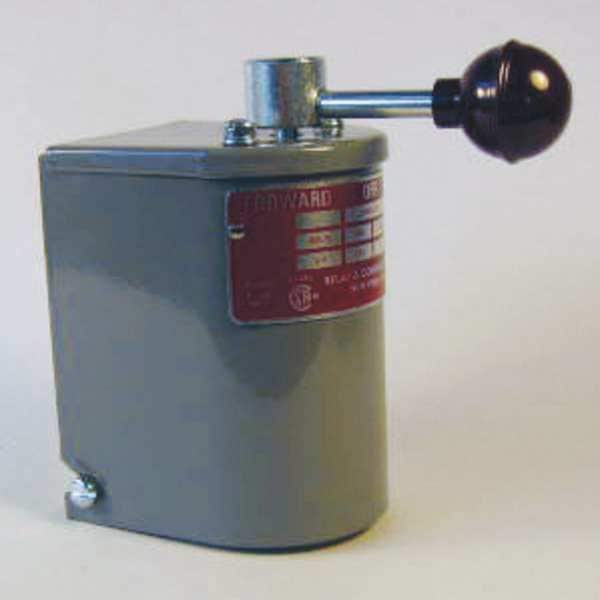

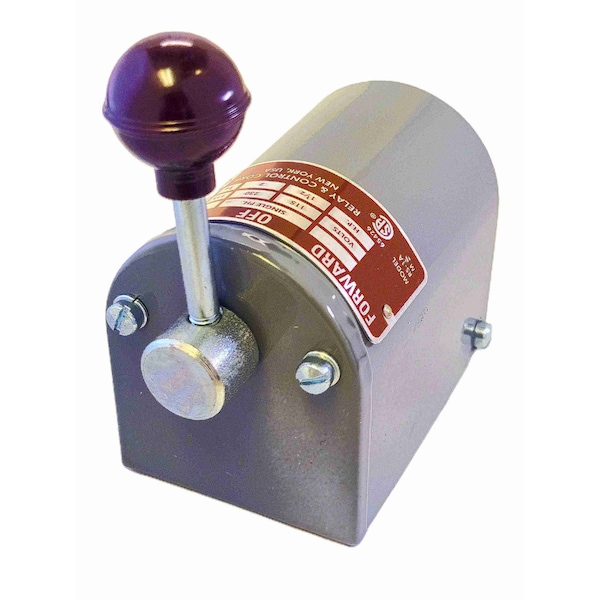

Drum Switch, Stainless Steel, 2 hp
- Mfr # RS-1A-MS
- Zoro # G0543851
product price:Â
$
113.99
/ea
Free Shipping & Returns
Key Features
Number of Poles
2
Handle Material
Stainless Steel
Standards
CSA Certified, UL
Maximum Voltage Rating
230V AC
Phase
Single
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- RS-1A-MS
- Zoro #
- G0543851
- UPC #
- -
- Country of Origin
- United States
- Item
- Drum Switch
- Number of Poles
- 2
- Handle Material
- Stainless Steel
- Standards
- CSA Certified, UL
- Maximum Voltage Rating
- 230V AC
- Phase
- Single
- Series
- RS
- NEMA Enclosure Rating
- 1
- Mounting Style
- Surface
- Horsepower @ 115V DC
- 1/4 hp
- Horsepower @ Three Phase - 240V AC
- 1 hp
- NEMA Enclosure Material
- Steel
- Reversing Capability
- Reversing
- Resistance Properties
- Corrosion Resistant
- Horsepower @ Single Phase - 240V AC
- 2 hp
- Horsepower @ 230V DC
- 1/4 hp
- Horsepower @ Single Phase - 120V AC
- 1 1/2 hp
- Horsepower @ Three Phase - 208V AC
- 2 hp
- Horsepower @ Three Phase - 480V AC
- Not Rated
- Switch Action
- Momentary
- Horsepower @ Three Phase - 600V AC
- Not Rated
- Contact Material
- Copper
Description
Drum Switch, Switch Action Momentary, Phase Single, Reversing Capability Reversing, Horsepower @ Three Phase - 240V AC 1 hp, Horsepower @ Three Phase - 480V AC Not Rated, Mounting Style Surface, Maximum Voltage Rating 230V AC, Horsepower @ Single Phase - 120V AC 1 1/2 hp, NEMA Enclosure Rating 1, Number of Poles 2, Horsepower @ Single Phase - 240V AC 2 hp, Horsepower @ Three Phase - 208V AC 2 hp, Horsepower @ Three Phase - 600V AC Not Rated, Standards CSA, UL, Contact Material Copper
