  15. Limit Switch - Heavy Duty, Rotary, DPDT 10A, Surface Mount, LSA Series

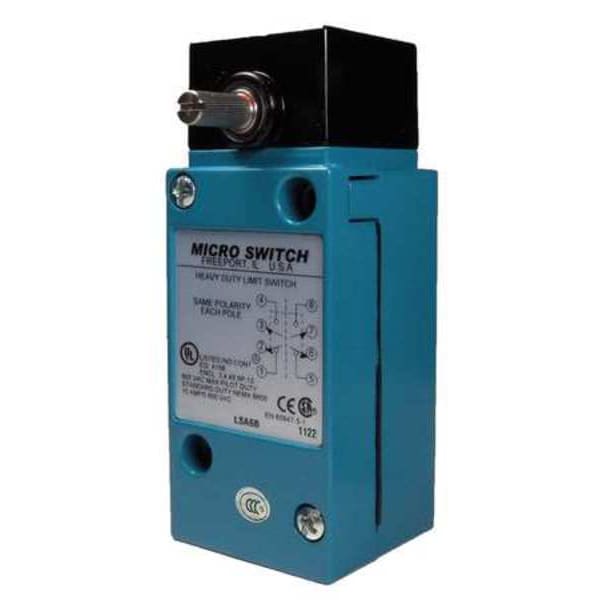

Honeywell Limit Switch - Heavy Duty, Rotary, DPDT 10A, Surface Mount, LSA Series LSA6B - main

Limit Switch - Heavy Duty, Rotary, DPDT 10A, Surface Mount, LSA Series

  • Mfr # LSA6B

  • Zoro # G4091035

product price: $236.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
No Lever, Rotary
Contact Form- Switches
2NC/2NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 600V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LSA6B
Zoro #
G4091035
UPC #
-
Country of Origin
United States

Dimensions

Body Height - Limit Switch
3.69 in
Depth
1.79"
Body Depth - Limit Switch
1.75 in
Body Width - Limit Switch
1.62 in
Roller Width
0.19 in
Height
4.69"
Width
1.88"
Body Height
3.53 in
Overall Depth
2.44 in
Body Width
1.88 in
Overall Height
4.69 in
Overall Width
1.88 in
Mounting Hole Diameter
0.2 in
Body Depth
1.79 in

Details

Item
Heavy Duty Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
No Lever, Rotary
Contact Form- Switches
2NC/2NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 600V
DC Contact Rating - Limit Switch
10A at 250V
Body Style - Limit Switch
Standard
Mounting - Limit Switch
Surface
NEMA Rating
1, 12, 13, 3, 4, 4X, 6, 6P
Standards
CCC, CE, CSA, UL
Stem Thread - Limit Switch
No Stem
Mounting Hole Pattern - Limit Switch
2 Hole Diagonal
Operating Temp. Range
10 Degrees to 250 Degrees F
Body Style (Limit Switch)
Standard
Number of Poles
2
Boot Sealed Actuator - Limit Switch
No
Operating Force
4.0 in-lb
Mounting Hole - Limit Switch
(2) 0.20 in dia
Voltage Rating
600VAC/250VDC
Contact Form - Limit Switch
2NC/2NO
Boot Sealed Actuator (Limit Switch)
No
Actuator Style (Limit Switch)
Rotary, No Lever
Travel
Differential Travel 7 Degrees , Maximum Pretravel 15 Degrees , Minimum Over Travel 60 Degrees
Limit Switch Style
Heavy Duty Limit Switch
DC Contact Rating
10A at 250V
Actuator Location (Limit Switch)
Side
Mounting Hole Spacing - Limit Switch
2.34 in x 1.16 in
Electrical Connection
Screw Terminals
Contact Form
2NC/2NO, DPDT
Wiring Entry
1/2"-14 NPT
AC Contact Rating
10A at 600V
IP Rating
65, 66, 67
Actuator Location
Side
Basic Actuator Style (Limit Switch)
Rotary
Amps
10
Body Material
Zinc Die Cast
Movement
CCW, CW
Actuator Style
Rotary Head, No Lever
Series
LSA
Differential Travel
7 Degrees
Mounting Hole Horizontal Center to Center Distance
60 mm
Mounting Style
Surface
Resistance Properties
Corrosion Resistant
Number of Mounting Holes
2
Body Configuration
Plug-In
Boot Sealed Actuator
No Boot Included
Operating Temperature - Minimum
10 Degrees F
Operating Torque - Maximum
4 in-lb
Pretravel
15 Degrees
Action
Momentary
NEMA Enclosure Rating
1, 12, 13, 3, 4, 4X, 6, 6P
Overtravel
60 Degrees
Directional Movement
CCW/CW
Includes Actuator
No Actuator Included
Mounting Hole Vertical Center to Center Distance
30 mm
Operating Temperature - Maximum
250 Degrees F

Description

The Honeywell Heavy Duty Limit Switch from the LSA Series is a rotary-style, side-actuated switch rated for operation within the specified environmental and electrical parameters. It features a zinc die-cast body with plug-in configuration and surface mounting, supporting both clockwise (CW) and counterclockwise (CCW) actuation. The unit offers momentary action with a contact form of 2NC/2NO (DPDT), rated for 10A at 600V AC or 10A at 250V DC. No actuator lever is included.

Key features:

  • Rotary head actuator style without lever; side actuator location
  • Contact rating: 10A at 600V AC / 10A at 250V DC; DPDT (2NC/2NO)
  • Surface mount with two diagonal mounting holes (0.20 in diameter, spacing: 2.34 in x 1.16 in)
  • Body dimensions: Height – 4.69 in, Width –1.88 in, Depth –1.79 in
  • Operating temperature range: 10°F to 250°F
  • NEMA enclosure ratings: Types 1,12,13,3,4,4X,6,6P; housing constructed to meet IP65/66/67 standards as specified
  • Electrical connection via screw terminals; wiring entry size: 1/2"-14 NPT
  • Mechanical travel specifications include differential travel of7°, pretravel of15°, overtravel of60°
  • Standards met: CCC, CE, CSA, UL
