  9. Receptacle, 4 to 4/0, Female, Ylw, Taper
Shop All Single Pole Devices
Hubbell

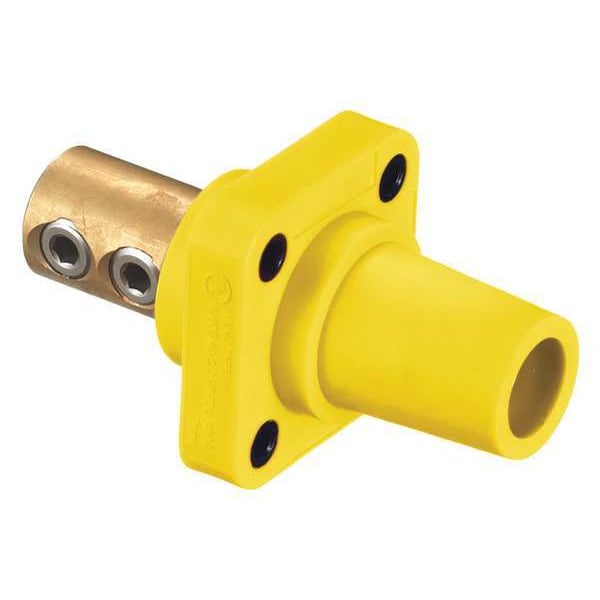

Receptacle, 4 to 4/0, Female, Ylw, Taper

product price: $54.45
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Receptacle
  • Series 16
  • Amps AC 400 A
  • Amps AC/DC 300/400AC/DC
  • NEMA Rating 12, 3R, 4X
See all product information

Product Information

Dimensions

Power Terminals Wire Size #4 to 4/0
Overall Length 4.1 in
Minimum Wire Size 4 AWG
Overall Width 2.2 in
Maximum Wire Size 4/0 AWG
Wire Size #4 AWG to #4/0 AWG
Display Size Standard Sized Product

Details

Item Receptacle
Type Receptacle
Series 16
Amps AC 400 A
Amps AC/DC 300/400AC/DC
NEMA Rating 12, 3R, 4X
Single Pole Device Style Taper Nose
Terminal Connection Double Set Screw
Color Yellow
Cable Range 4 to 4/0
Voltage Rating 250V DC, 600V AC
Fits UL1691
Material Thermoplastic Elastomer
Male/Female Female
Standards ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Mounting Screw Mount
Conductor Material Brass
Gender Female
End Type Taper Nose
Mounting Style Through Hole Mounting
Receptacle Gender For Male Plugs
Connection Orientation Straight
Contact Material Brass
For Location Indoor
Current Rating 400 A
NEMA Enclosure Rating 12, 3R, 4X
Compatible with Series 16
Housing Material Thermoplastic Elastomer
Terminal Connection Type Double Set Screw
Housing Color Yellow
Phase Single
Flange Shape Square
Number Of Wires 1-Wire
Application High Ampacity Connections
Industry Standard(s) National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Amperage Rating 400 A
Material - Mounting Hardware Threaded Thru-Hole
Voltage Rating Description 600V AC/DC
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Style Double Set Screw Female
Item Type Panel Mount Receptacle
Performance Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17 Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - #4 to 4/0 AWG
Wattage 240000
Current / Amperage Rating 400 A
Connectivity Double Set Screw
Number Of Poles 1-Pole

Description

Receptacle, Connection Orientation Straight, Current Rating 400 A, Gender Female, Housing Color Yellow, Housing Material Thermoplastic Elastomer, Maximum Wire Size 4/0 AWG, Minimum Wire Size 4 AWG, Phase Single, Voltage Rating 250V DC, 600V AC, Contact Material Brass, End Type Taper Nose, Flange Shape Square, NEMA Enclosure Rating 12, 3R, 4X, Standards ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed, Terminal Connection Type Double Set Screw
