  11. Flanged Locking Inlet, 30 A, 347/600V AC, Three Phase, 4 Pole, Flush Mount, Screw Terminals, White

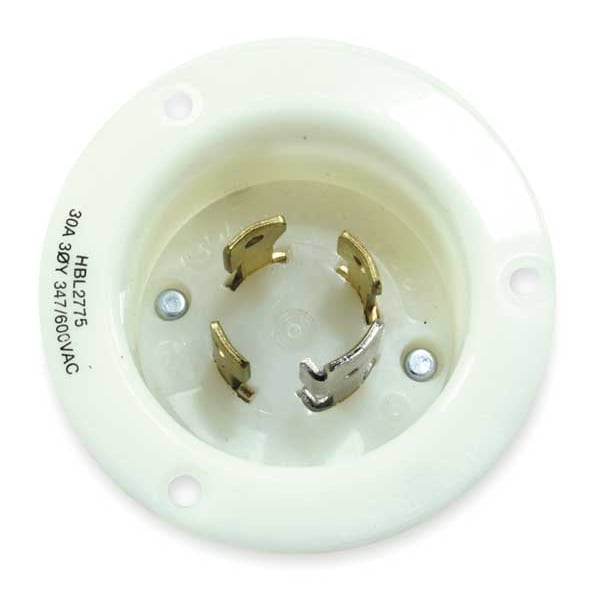

Hubbell Wiring Device-Kellems Flanged Locking Inlet, 30 A, 347/600V AC, Three Phase, 4 Pole, Flush Mount, Screw Terminals, White HBL2775 - main

Flanged Locking Inlet, 30 A, 347/600V AC, Three Phase, 4 Pole, Flush Mount, Screw Terminals, White

  • Mfr # HBL2775

  • Zoro # G2584961

product price: $68.59
/ea

Key Features

Current Rating
30 A
Voltage Rating
347/600V AC
Phase
Three
Number of Poles
4
Number of Wires
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2775
Zoro #
G2584961
UPC #
783585039534
Country of Origin
United States

Dimensions

Maximum Wire Size
8 AWG
Face Diameter
2.23 in
Flange Diameter
3.06 in
Face Plate Width
0.09 in
Overall Depth
2.27 in
Minimum Wire Size
16 AWG
Wire Size
#16 AWG - #8 AWG solid or stranded copper wire only.
Length
3.06 in
Width
3.06 in
Height
2.27 in
Dimensions
3.06 in x 3.06 in x 2.27 in

Details

Item
Locking Plug
Current Rating
30 A
Voltage Rating
347/600V AC
Phase
Three
Number of Poles
4
Number of Wires
4
Wire Connection Type
Screw Terminals
Shrouded
No
Grounding
Non-Grounded
Housing Color
White
Mount Type
Flush
Cover Type
No Cover
IP Rating
IP20
NEMA Enclosure Rating
12, 4X
Standards
CSA C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Impact Resistant, Moisture Resistant
Flange Type
Flanged
Wiring Style
Standard
Material
Thermoset
Mounting Type
Flush Mount
Special Features
With Cover
Grade
General Use
Number of Blades
4
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
167 Degrees F
Features
Accepts Slotted, Phillips, and Robertson Head Drivers
Market
Industrial
Housing Material
Nylon
Blade Material
Brass
Includes Mounting Hardware
Yes
For Environment
Dry
Includes
Mounting Screws
For Location
Indoor
Flange Material
Nylon
NEMA Plug Configuration
L20-30P
Terminal Designations
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Lock Type
Twist-lock
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
Amperage Rating
30 A
Dielectric Strength
Withstands 2,000V minimum
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C. Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Application
Extra Heavy Duty Industrial
OEM Brand Name
Hubbell Wiring Device-Kellems
Material - Mounting Hardware
Screw Mounting
Insulation
Insulated Body
NEMA Configuration
L20-30
Amps
30
NEMA Rating
12, 4X
NEMA Receptacle Configuration
L20-30P

Description

The HUBBELL 30A Flanged Locking Inlet is a flush-mount, twist-lock inlet suitable for use in industrial environments. It features a 4-pole, 4-wire configuration and is rated for 347/600V AC at 30 amps. Constructed with impact-resistant thermoplastic housing and flange, this inlet accommodates #16 AWG to #8 AWG solid or stranded copper wire using screw terminals and supports backwired terminations for installation flexibility.


Key Features of the HUBBELL - 30A Flanged Locking Inlet:

  • Amperage/Voltage: Rated for 30 A, 347/600V AC; three-phase power with four poles and four wires

  • NEMA Configuration: L20-30P plug compatibility; locking design intended to reduce the likelihood of accidental disconnection

  • Material Construction: Nylon housing and flange; brass blades used for electrical connection

  • Mounting Style: Flush mount flanged inlet includes mounting screws for installation

  • Screw Terminals: Accepts slotted, Phillips, or Robertson drivers; accommodates #16–#8 AWG copper wire

  • Operating Temperature Range: Maximum continuous operation at 75°C; minimum -40°C (without impact)

  • Standards Compliance: Certified to CSA C22.2 No.42, UL 498 listed, Federal Specification W-C-596

  • Ingress Protection & Suitability: IP20 rating suitable for indoor dry locations unless additional protection is provided
