  11. Locking Plug, L5-15P, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Yellow

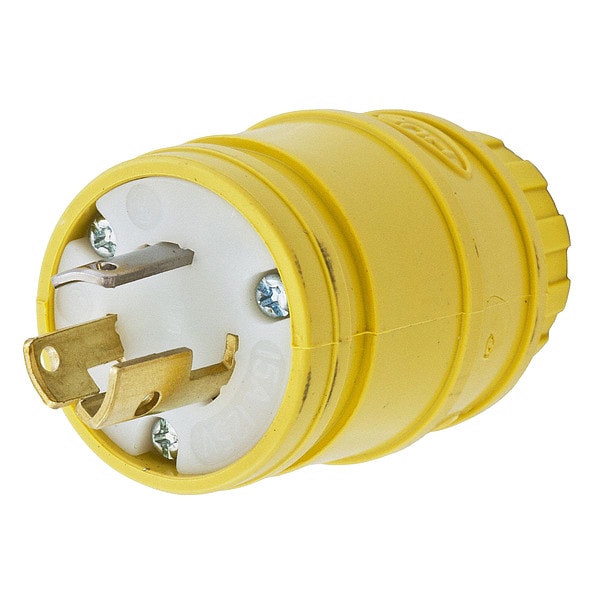

Hubbell Wiring Device-Kellems Locking Plug, L5-15P, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Yellow HBL24W47 - main

Locking Plug, L5-15P, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Yellow

  • Mfr # HBL24W47

  • Zoro # G3197336

product price: $27.79
/ea

Key Features

NEMA Plug Configuration
L5-15P
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL24W47
Zoro #
G3197336
UPC #
783585235844
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.655 in
For Minimum Cable Diameter
0.30 in
Cord Size
0.300 in to 0.655 in
Maximum Wire Size
10 AWG
Minimum Wire Size
18 AWG
Body Length
1.55 in
Outside Diameter
1.55 in
Length
1.55 in
Wire Size
#18 AWG to #10 AWG
Width
1.55 in
Height
2.65 in
Dimensions
1.55 in x 1.55 in x 2.65 in

Details

Item
Locking Plug
NEMA Plug Configuration
L5-15P
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Yellow
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant, Watertight
Material
Nylon
Special Features
Moisture, Dust and Weather Resistant
Grade
Industrial
Application
Extra Heavy Duty Industrial
Market
Industrial
Housing Material
Polybutylene Terephthalate
Maximum Operating Temperature
75 Degrees C
Minimum Operating Temperature
-40 Degrees C
Polarized
Yes
Blade Material
Brass
Horsepower Rating
1/2 hp
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
Amperage Rating
15 A
OEM Brand Name
Hubbell Wiring Device-Kellems
Dielectric Strength
Withstands 2,000V minimum
Cord Range
0.300"-.655"(7.6-16.6)
Material - Mounting Hardware
Cord Mounted
Cord Type
All Listed Portables
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18 AWG- #10 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amps
15
Antimicrobial
No

Description

The HUBBELL 15A Locking Plug L5-15P is an industrial locking plug rated for use in specified environments. It includes a shrouded design with an integral sealing shroud and nylon compression nut.


Key Features of the HUBBELL 15A Locking Plug L5-15P:

  • Amperage/Voltage Rating: Rated for 15 A, 125V AC single-phase operation

  • NEMA Configuration: L5-15P (2-pole, 3-wire, grounded)

  • Cable Range: Accepts cord diameters from 0.300" to 0.655"

  • Wire Accommodation: Supports stranded copper wire sizes #18 AWG to #10 AWG

  • Weather Resistance: Features an integral shroud and nylon compression nut

  • Material Construction: Housing made from polybutylene terephthalate; blades are brass; overall body is nylon

  • Temperature Range: Operates continuously between -40°C (without impact) up to +75°C

  • Chemical & Impact Resistant components

  • Standards Compliance: Certified to CSA C22.2 No.42, UL 498 Listed, Federal Specification W-C-596
