Shop HUBBELL WIRING DEVICE-KELLEMS

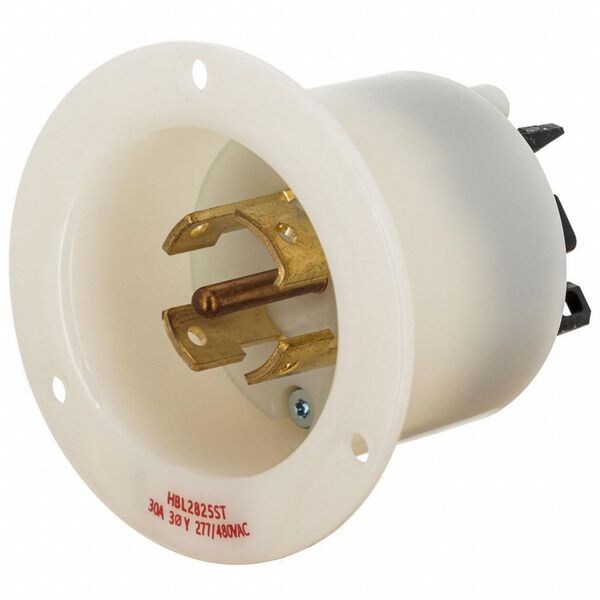

Locking Receptacle, 30 A, 277/480V AC, Three Phase, 4 Pole, Flush Mount, Spring Clamp Terminals

  • Mfr # HBL2825ST

  • Zoro # G806171314

product price:  $70.88
/ea

Key Features

NEMA Receptacle Configuration
L22-30R
Current Rating
30 A
Voltage Rating
277/480V AC
Phase
Three
Number of Poles
4
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL2825ST
Zoro #
G806171314
UPC #
783585681719
Country of Origin
China

Dimensions

Face Plate Width
0.09 in
Flange Diameter
2.69 in
Face Diameter
2.23 in
Overall Depth
2.64 in
Maximum Wire Size
8 AWG
Minimum Wire Size
14 AWG

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
L22-30R
Current Rating
30 A
Voltage Rating
277/480V AC
Phase
Three
Number of Poles
4
Number of Wires
5
Wire Connection Type
Spring Clamp Terminals
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Cover Type
No Cover
Flange Type
Flanged
Standards
CSA C22.2 No. 42, Federal Specification W-C-596, UL 498
IP Rating
IP20
Grade
Federal Specification
Housing Material
Nylon
Minimum Operating Temperature
-40 Degrees F
NEMA Plug Configuration
L22-30P
Horsepower Rating
10 hp
Market
Industrial
Maximum Operating Temperature
167 Degrees F
Number of Blades
5
Housing Material Finish
Natural
Includes
14 AWG - 8 AWG Copper Wire
For Location
Indoor
Shrouded
No
NEMA Configuration
L22-30
Blade Material
Copper Alloy
UL 94 Flammability Rating
HB

Description

The HUBBELL Locking Receptacle is a flanged, industrial-grade electrical connector intended for power connections in indoor environments. It features spring clamp terminals that enable wire termination without requiring screwdrivers or torque wrenches. The receptacle supports backwired installation and includes a funnel-shaped wire entry to assist with wiring with copper conductors ranging from 14 AWG to 8 AWG.


Key Features of the HUBBELL Locking Receptacle:

  • NEMA Configuration: L22-30R (compatible with L22-30P plugs), three-phase, four-pole, five-wire design

  • Current/Voltage Rating: Rated for 30 A at 277/480V AC

  • Horsepower Rating: Supports up to 10 hp applications

  • Wire Connection Type: Spring clamp terminals are used to maintain conductor connection and may reduce installation time

  • Copper Wire Range Included: Accepts 14 AWG – 8 AWG copper wires

  • Operating Temperature Range: -40°C minimum to +75°C maximum

  • Housing Material: Nylon housing with natural finish; UL 94 HB flammability rating

  • Ingress Protection: IP20 rated for indoor use only

  • Standards Compliance: Meets CSA C22.2 No.42, Federal Specification W-C-596, and UL 498 requirements
