  6. Pin & Sleeve Plug, 20 A, 347/600V AC, Three Phase, 4 Pole, IEC Grounding, Black, NEMA Not Rated

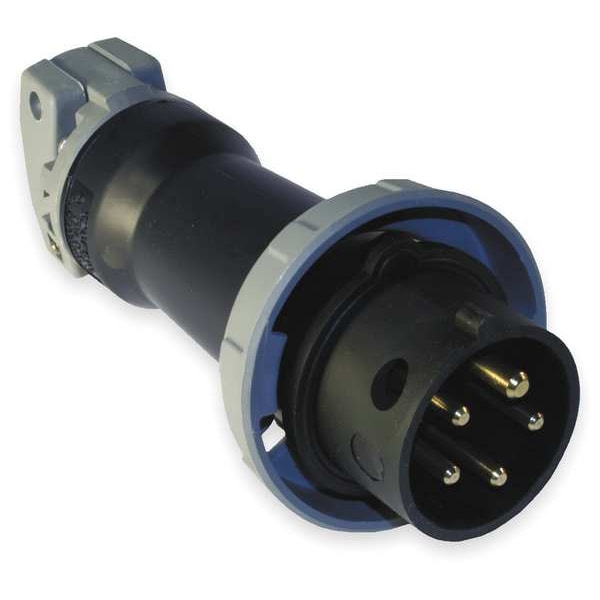

Hubbell Wiring Device-Kellems Pin & Sleeve Plug, 20 A, 347/600V AC, Three Phase, 4 Pole, IEC Grounding, Black, NEMA Not Rated HBL520P5W - main

Pin & Sleeve Plug, 20 A, 347/600V AC, Three Phase, 4 Pole, IEC Grounding, Black, NEMA Not Rated

  • Mfr # HBL520P5W

  • Zoro # G1668073

product price:  $234.90
/ea
Free Shipping & Returns

Key Features

Voltage Rating
347/600V AC
Number of Poles
4
Number of Wires
5
IP Rating
IP67
Wire Connection Type
Screw Terminals
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL520P5W
Zoro #
G1668073
UPC #
783585405322
Country of Origin
United States

Dimensions

For Minimum Cable Diameter
0.33 in
Minimum Wire Size
14 AWG
Maximum Wire Size
1 AWG
For Maximum Cable Diameter
0.83 in
Overall Length
7.64 in
Display Size
Standard Sized
Wire Size
#1 AWG to #250MCM

Details

Item
Pin & Sleeve Plug
Current Rating
20 A
Voltage Rating
347/600V AC
Phase
Three
Number of Poles
4
Number of Wires
5
IP Rating
IP67
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Housing Color
Black
Cap Type
No Cap or Cover
Standards
CSA Certified File LR280C, UL Classified to IEC 60309-1 IEC 60309-2, UL Standard UL1682 and UL 1686C2
Resistance Properties
Impact Resistant, Moisture Resistant, Watertight
Grounding Style
IEC
Body Material
Zytel 801 Nylon
Body Material - Pin and Sleeve
Zytel 801 Nylon
Features
Gasketed Sealing Ring Provides Watertight Seal, Raised Collar Surrounds Each Phase Pin, Solid One-Piece Pins Machined from Solid Brass
HP
7 1/2 hp
Switch Rated
No
Power Indicating Light
No
Shrouded
Yes
Minimum Operating Temperature
-40 Degrees F
Reverse Service
No
Maximum Operating Temperature
75 Degrees C
Horsepower Rating
10 hp
NEMA Enclosure Rating
Not Rated
Housing Material
Non-Metallic
Material
Composite
Hub Style
Standard
Application
High Ampacity Connections
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No.182.1 /UL1682 Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
Style
Standard Service
Industry Standard(s)
CSA Certified File LR280C UL Classified to IEC 60309-1 IEC 60309-2 UL Standard UL1682 and UL 1686C2
OEM Brand Name
Hubbell Wiring Device-Kellems
Environmental Conditions
Watertight
Series
HBL Heavy Duty
Material - Mounting Hardware
Cord Mounted
Cord Type
All Portable
Connection Type
Screw Terminals

Description

The HUBBELL IEC Pin and Sleeve Plug is a electrical connector rated for up to 20A at 347/600V AC, suitable for use in various environments. This 4-pole, 5-wire plug supports up to 20A at 347/600V AC and features a non-metallic Zytel 801 nylon housing. It is grounded, shrouded, and compatible with specified portable cord types within the stated cable diameter range. The device meets multiple industry standards including CSA certification and UL classification to IEC 60309-1/2.


Key Features of the HUBBELL IEC Pin and Sleeve Plug:

  • Current Rating: Rated for operation up to 20A at a maximum voltage of 347/600V AC

  • Construction: One-piece Zytel 801 nylon body with composite materials; impact resistant and moisture resistant as tested according to applicable standards

  • Ingress Protection: IP67 rated enclosure as defined by standard testing procedures

  • Cord Mounting: For cord-mounted installation; accepts cable diameters from 0.33 in to 0.83 in

  • Wire Size Compatibility: Accepts wire sizes from #14 AWG up to #1 AWG

  • Connection Type: Pressure terminal screws (screw terminals) used for wire connection

  • Pins & Contacts: Solid brass pins with raised collar design; thermoset polyester contact carrier tested per relevant standards

  • Temperature Range: Operates between -40°C minimum and +75°C maximum continuous temperature without impact

  • Standards Compliance: Certified per CSA LR280C and UL Classified to IEC 60309-1/2 standards.
