  11. Wall Switch, 3-Way, 120/277V, 20A, Wht, Rockr

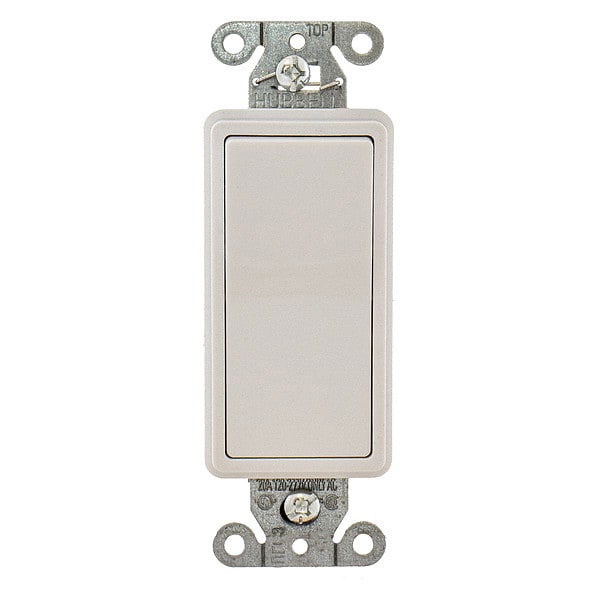

Hubbell Wiring Device-Kellems Wall Switch, 3-Way, 120/277V, 20A, Wht, Rockr DS320W - main

Wall Switch, 3-Way, 120/277V, 20A, Wht, Rockr

  • Mfr # DS320W

  • Zoro # G1466841

product price: $32.47
/ea

Key Features

Switch Type
3-Way
Switch Style
Rocker
Amps AC
20 A
Color
White
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DS320W
Zoro #
G1466841
UPC #
783585108407
Country of Origin
China

Dimensions

Minimum Wire Size
14 AWG
Overall Width
1.4 in
Overall Height
1 in
Maximum Wire Size
10 AWG

Details

Item
Wall Switch
Switch Type
3-Way
Switch Style
Rocker
Amps AC
20 A
Color
White
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back, Side
Application Environment
Commercial
Standards
UL Listed
Antimicrobial
No
Rated HP
1
Voltage
120/277V AC
Number of Switches
1
Maximum Operating Temperature
75 Degrees C
Resistance Properties
Impact Resistant
Voltage Rating
120/277V AC
Market
Commercial
Housing Material
Thermoplastic
Wire Connection Type
Screw Terminals
Current Rating
20 A
Minimum Operating Temperature
-40 Degrees F
Features
Automatic Self-Grounding Staple
Grounding
Grounded
Horsepower Rating
1 hp
Rocker Color
White
Switch Handle Positions
2
Max. Working Voltage
277V AC
Wiring Style
Back and Side Wired
Switch Grade
Decorator Series
Amperage
20A
Flammability
UL 94V-2
Product Type
Toggle-switches
Temperature Rise
30°C maximum at rated current
Overload
Minimum 4.8 times rated current for 100 cycles
Max. Continuous Current
20A
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Listing and Certifications
UL Listed and CSA Certified
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact

Description

Wall Switch, Color White, Current Rating 20 A, Switch Function Maintained, Switch Type 3-Way, Voltage Rating 120/277V AC, Wiring Method Back, Side, Horsepower Rating 1 hp, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Rocker, Wire Connection Type Screw Terminals, Features Automatic Self-Grounding Staple, Grounding Grounded, Housing Material Thermoplastic, Market Commercial
