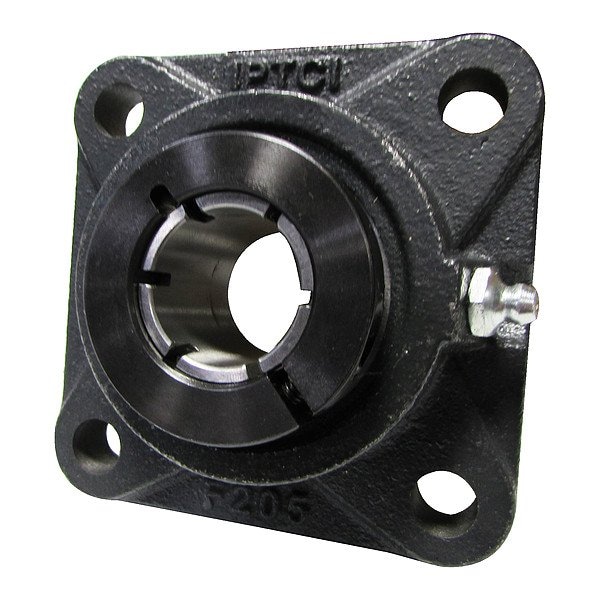

4 Holes, Flange Bracket Housing, Flange Mount Bearing, Radial Ball, 25 mm Dia, Cast Iron, Concentric Locking Collar
Mfr # CLF205-25MM
Zoro # G512006511
product price:Â
$
88.89
/ea
Key Features
System of Measurement
Metric
Housing Type
Flange Bracket
Number of Mount Holes
4
Bearing Insert Type
Radial Ball
Shaft Locking Type
Concentric Locking Collar
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- CLF205-25MM
- Zoro #
- G512006511
- UPC #
- -
- Country of Origin
- China
Dimensions
- Bore Diameter
- 25 mm
- Mount Hole Center-to-Center Length
- 70 mm
- Overall Length
- 95 mm
- Overall Width
- 38.1 mm
- Overall Height
- 95 mm
- Flange Thickness
- 14.3 mm
- Mount Hole Center-to-Center Height
- 70 mm
- Back Side to Center Width
- 16 mm
- Mount Hole Size
- 12 mm
- Inner Ring Width
- 38.1 mm
- Wire Rope Length
- 95 mm
- Mounting Bolt Size
- 3/8, M10
- Bolt Circle Diameter
- 12 mm
- Length
- 95 mm
Description
Flange Mount Bearing, Back Side to Center Width 16 mm, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 25 mm, Bore Type Cylindrical, Center Height Not Applicable, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Square, Included Bearing CL205-25MM, Lubricant Material NLGI #2 Equivalent, Maximum Speed 5,850 RPM Grease, Maximum Temperature 248 Degrees F, Minimum Temperature -4 Degrees F
