Shop JABSCO

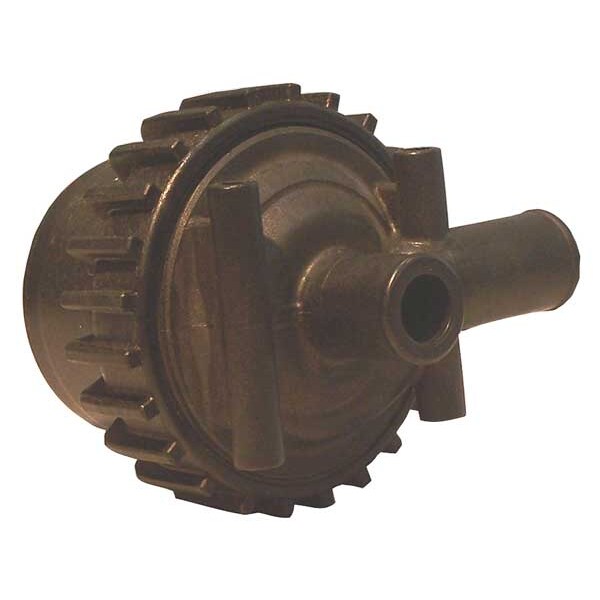

Plastic 1/64 HP Centrifugal Pump 8-24V

  • Mfr # 59530-0000

  • Zoro # G1127427

product price:
$
293.99
/ea
Free Shipping & Returns

Key Features

HP - Pumps
1/64 hp
Voltage - Pumps
8 to 24V DC
Housing Material - Pumps
Plastic
Inlet Size - Pumps
3/4 in BSP
Outlet Size - Pumps
3/4 in HB
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
59530-0000
Zoro #
G1127427
UPC #
094705584422
Country of Origin
Hungary

Dimensions

Inlet Size - Pumps
3/4 in BSP
Outlet Size - Pumps
3/4 in HB
Height
3 in
Inlet/Outlet Size
3/4"
Length
4 in
Manufacturers Warranty Length
1 yr
Width
2 11/16 in
Overall Height
3 in
Compatible Discharge Pipe Size
3/4 in
Cord Length
49 ft
Overall Width
2.6 in
Overall Length
4 in
Compatible Intake Pipe Size
3/4 in
Manufacturer Warranty Length
1 yr
Inlet Diameter
3/4 in
Discharge Diameter
3/4 in
Wire Rope Length
4 in

Details

HP - Pumps
1/64 hp
Voltage - Pumps
8 to 24V DC
Housing Material - Pumps
Plastic
Max. Pressure - Pumps
3 psi
Max. Head
5 1/2 ft
Motor Enclosure - Pumps
Totally Enclosed Fan-Cooled
Impeller Material
Plastic
Min. GPM @ Head
3 @ 4 ft
Max. Liquid Temp.
176 Degrees F
Item
Centrifugal Pump
Item - Straight Centrifugal Pumps
Straight Centrifugal High Flow Pump
Motor Type
Brushless
Housing Material
Plastic
Motor Enclosure
Totally Enclosed Fan Cooled
Voltage
8-24V DC
Max. GPM @ Head
4 @ 2 ft
Duty
Continuous
Max. Pressure
2.9 psi
Agency Compliance
CE Certified, Meets EMC
HP
1/64
Best Efficiency GPM @ Head
3 gpm @ 2 ft
Outlet
3/4" HB
Amps
1.8
Pump Type
Magnetic Drive Circulation Pump
Inlet
3/4" BSP
GPH of Water @ 5 Ft. of Head
2.5
Maximum Feet of Head
5.5 ft
Features
Handles Aggressive Liquids, High Efficiency, Low Power Consumption, Maintenance Free
Pump Housing Material
Plastic
Best Efficiency Flow
3 gpm
Discharge Type
NPT
Nameplate Voltage
8-24V DC
Shaft Material
Stainless Steel
Maximum Flow Rate
5.7 gpm
Compatible with Media Type
Water
Seal Type
Sealless
Horsepower
1/64 hp
Flow Rate @ 5 ft of Head (Maximum)
2.5 gpm
Best Efficiency Head
2 ft
Duty Cycle
Continuous
Shut Off Pressure (Maximum)
1.68 psi
Pumping Application
Hot Water Circulation, Raw Water Cooling
Standards
ISO 8846
For Use With Potable Systems
No
Volute Material
Plastic
Flow Rate (Maximum)
5.7 gpm
Feet of Head (Maximum)
5.5 ft
Shut Off Pressure - Maximum
1.6 psi
Shaft Seal Type
Sealless
Chemical Compatibility
Water

Description

Centrifugal Pump, Phase -, Pump Housing Material Plastic, Horsepower 1/64 hp, Nameplate Voltage 8-24V DC, Flow Rate @ 40 ft of Head (Maximum) Not Applicable, Flow Rate @ 60 ft of Head (Maximum) Not Applicable, Flow Rate @ 80 ft of Head (Maximum) Not Applicable, Maximum Feet of Head 5.5 ft, Compatible Intake Pipe Size 3/4 in, Compatible Discharge Pipe Size 3/4 in, Discharge Type NPT, Motor Enclosure Totally Enclosed Fan Cooled, Maximum Flow Rate 5.7 gpm, Flow Rate @ 5 ft of Head (Maximum) 2.5 gpm
