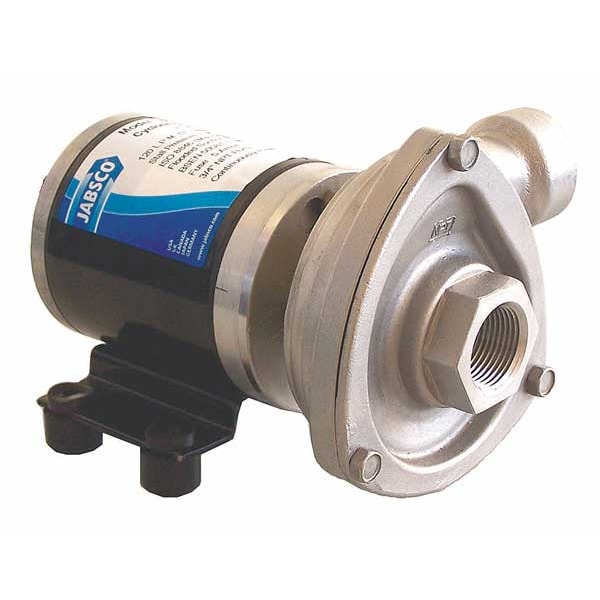

Stainless Steel 5/32 HP Centrifugal Pump 12V

  • Mfr # 50840-0012

  • Zoro # G2205874

product price:  $485.99
/ea
Free Shipping & Returns

Key Features

HP - Pumps
5/32 hp
Voltage - Pumps
12V DC
Housing Material - Pumps
Stainless Steel
Inlet Size - Pumps
3/4 in NPT
Outlet Size - Pumps
3/4 in NPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
50840-0012
Zoro #
G2205874
UPC #
671880579377
Country of Origin
China

Dimensions

Inlet Size - Pumps
3/4 in NPT
Outlet Size - Pumps
3/4 in NPT
Manufacturers Warranty Length
1 yr
Length
6 in
Height
5 in
Inlet/Outlet Size
3/4"
Width
6 1/2 in
Compatible Discharge Pipe Size
3/4 in
Overall Width
4 in
Overall Length
6.3 in
Overall Height
4.4 in
Compatible Intake Pipe Size
3/4 in
Manufacturer Warranty Length
1 yr
Inlet Diameter
3/4 in
Discharge Diameter
3/4 in
Wire Rope Length
6.3 in

Details

HP - Pumps
5/32 hp
Voltage - Pumps
12V DC
Housing Material - Pumps
Stainless Steel
Max. Pressure - Pumps
7 psi
Max. Head
8 ft
Motor Enclosure - Pumps
Totally Enclosed Fan-Cooled
Duty
Continuous
Housing Material
Stainless steel
Seal Material
Carbon
Agency Compliance
ISO 8846 Marine & USCG Regs.
Best Efficiency GPM @ Head
12.5 gpm @ 10 ft
Connection Style
FNPT
Min. GPM @ Head
5 @ 7.3 ft
Impeller Type
Anti Clog
Item - Straight Centrifugal Pumps
Straight Centrifugal High Flow Pump
GPH of Water @ 5 Ft. of Head
14
Pump Type
Low Pressure Centrifugal Pump
Max. Pressure
7.3 psi
Motor Type
Brushed
Voltage
12V
Item
Centrifugal Pump
Inlet
3/4" FNPT
Outlet
3/4" FNPT
Amps
9
Max. GPM @ Head
25 @ 1.5 ft
Impeller Material
Stainless Steel
HP
5/32
Max. Liquid Temp.
210 Degrees F
Motor Enclosure
Totally Enclosed Fan Cooled
Minimum Media Temperature
39 Degrees F
Maximum RPM
3,500 RPM
Motor Ambient Temperature (Minimum)
39 Degrees F
Standards
CE Certified, ISO 8846
Discharge Type
NPT
Pump Housing Material
Stainless Steel
Flow Rate @ 5 ft of Head (Maximum)
14 gpm
Best Efficiency Head
10 ft
Intake Type
NPT
Motor Ambient Temperature (Maximum)
203 Degrees F
Nameplate Voltage
12V DC
Series
50840
Horsepower
5/32 hp
Impeller Design
Anti-Clog
Maximum Flow Rate
29 gpm
Shut Off Pressure (Maximum)
7 psi
Best Efficiency Flow
12.5 gpm
Suction Lift (Maximum)
6.5 ft
Features
Silent Suction Lift, Various Discharge Port Configurations Available, Vibration Free Running
For Use With Potable Systems
No
Seal Type
Mechanical
Duty Cycle
Continuous
Shaft Material
Stainless Steel
Maximum Feet of Head
8 ft
Volute Material
Stainless Steel
Shut Off Pressure - Maximum
7 psi
Motor Speed - Maximum
3,500 RPM
Feet of Head (Maximum)
8 ft
Shaft Seal Material
Carbon
Suction Lift - Maximum
6.5 ft
Shaft Seal Type
Mechanical
Ambient Temperature - Maximum
203 Degrees F
Flow Rate (Maximum)
29 gpm
Media Temperature - Minimum
39 Degrees F

Description

This JABSCO Stainless Steel 5/32 HP Centrifugal Pump is a marine high flow pump that will keep your vessel running smoothly. The straight centrifugal pump has an efficiency of 12.5 gpm at 10 ft and 5 gpm at 7.3 ft, making it ideal for vessels with limited space. It also has a max GPM of 25 at 1.5 ft and a min GPM of 5 at 7.3 ft, so you can use it in different settings without worrying about causing damage to the system or affecting performance levels. Featuring a totally enclosed fan cooled motor enclosure, this low pressure centrifugal pump provides optimum cooling conditions for longer life and dependability. With its stainless steel construction and low pressure design, the JABSCO 5/32 HP Centrifugal Pump is sure to meet all your needs as a boat owner.
