  11. Mill/Drill Machine, 115/230V, 60 Hz

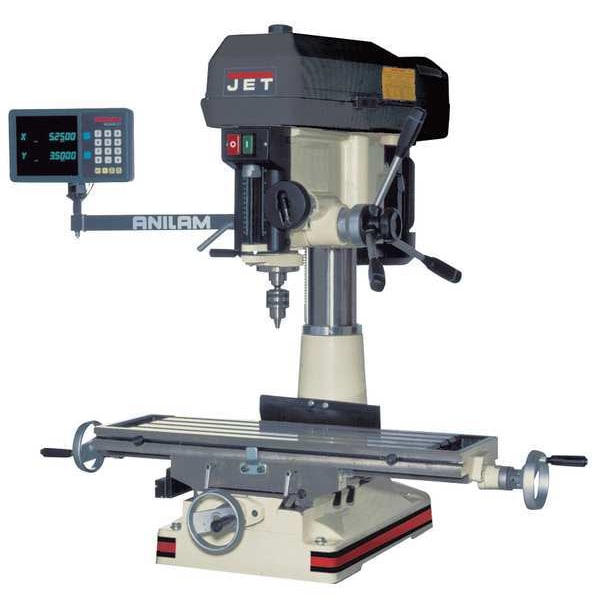

Jet Mill/Drill Machine, 115/230V, 60 Hz 350125 - main

Mill/Drill Machine, 115/230V, 60 Hz

  • Mfr # 350125

  • Zoro # G9816922

product price: $6,356.99
/ea
Additional $180.00 delivery surcharge applies per item.
See details

Key Features

Swing
14 1/2 in
Voltage
115/230V
Drilling Capacity Steel
1 in
Spindle Speed
110 to 2580 rpm
Face Milling Capacity
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
350125
Zoro #
G9816922
UPC #
662755514401
Country of Origin
Taiwan, Province of China

Dimensions

Chuck Size
1/2 in
Quill Dia.
2 7/16 in
Column Dia.
3-5/8 in
Overall Width
37 1/2 in
Overall Height
42 in
Overall Depth
38 in
T-Slot Width
9/16 in
Column Diameter
3 5/8 in
Table Work Surface - Width
23 in
Table Work Surface - Depth
7 1/2 in
Quill Diameter
2 7/16 in

Details

Swing
14 1/2 in
Voltage
115/230V
Item
Mill Drill
Drilling Capacity Steel
1 in
Spindle Speed
110 to 2580 rpm
Face Milling Capacity
2 1/2 in
Motor HP
1
Phase
Single
Longitudinal Travel
14 in
Cross Travel
6 in
Amps
26.0/13.0
End Milling Capacity
1/2 in
Includes
(3) Handle Rods, (3) Handwheels with Handles, (3) Rubber Knobs, 1/2 in Drill Chuck with Chuck Key, 2 1/2 in Angle Vise (JMD-15), 2) Rubber Knobs, 23 mm Wrench, 3 in Angle Vise, 3 mm Hex Wrench, 3/8 in Washer, 3/8 in x 1 in Hex Socket Cap Screw, 4 mm Hex Wrench, 5 mm Hex Wrench, Adjustable Carbide Facemill, Bolts, Can Touch-Up Paint, Crank Body, Crank Handle, Facemill Arbor, Lifting Hook, Nuts, Spindle Guard Assembly, Washers
Table Work Surface
7-1/2 in x 23 in
T-Slots
3, 5/8
Hz
60
Corded/Banded
Corded
Motor Type
TEFC - UL LISTED
Spindle Taper
R8
Head
Belt Drive
Corded/Cordless
Corded
Spindle Travel
3-1/2"
Spindle
R8
Spindle to Table
15"
Milling and Drilling Machine Product Grouping
Mill/Drill Machines
Operation
Manual
Features
360 Degrees Head Swivel, Belt Cover, Cast Iron Column, Large Hand Wheel Knobs, Quick Slide Latch, Quick Stop Knob, UL Listed Motor
Number of T-Slots
4
Motor Horsepower
1
Power Source
Corded
Frequency
60 Hz
Speed
110 to 2580 rpm
Milling Head Drive
Belt Drive
Spindle to Table Distance
14 1/2 in
Includes Chuck
Chuck Included
Swing Measurement
14 1/2 in
Included Powerfeeds
No Powerfeed
Spindle Speed - Minimum
110 RPM
Manufacturer Warranty
1 yr (Motors, Machine Accessories), 2 yr (Metal Working Machinery, Electric Hoists, Electric Hoist Accessories, Woodworking Machinery), 5 yr (Woodworking Machinery), 90 day (Parts and Consumable Items), Limited Lifetime (JET Parallel Clamps, VOLT Series Electric Hoists, Manual Hoists, Manual Hoist Accessories, Shop Tools, Warehouse, Dock Products, Hand Tools, Air Tools)
Head Swivel - Left
360 Degrees
Includes Lights
Light not Included
Number of Spindle Speeds
12
Head Material
Belt Drive
Series
JMD-15
Maximum Cross Travel
6 in
Motor Speed - Maximum
2,580 RPM
Horsepower
1 hp
Includes Digital Readout
Digital Readout Included
Column Shape
Round
Head Swivel - Right
360 Degrees
Column Material
Cast Iron
Maximum Longitudinal Travel
14 in
Spindle Speed - Maximum
2,580 RPM
Includes Stand
Stand Sold Separately
Maximum Spindle Travel
3 1/2 in
Standards
UL
Speed Control
Fixed

Description

Mill Drill, Phase Single, Swing 14 1/2 in
