  11. Indexable Cutting Head Unit, KM40TSS32GMDUNL15, 114.95mm L, 55 Degrees Diamond Insert Shape
Shop All Indexable Boring Bars
Km Systems

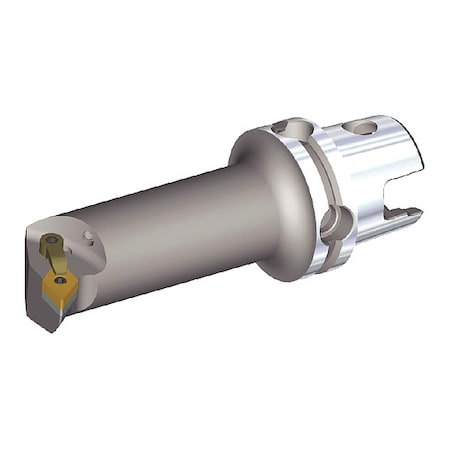

Indexable Cutting Head Unit, KM40TSS32GMDUNL15, 114.95mm L, 55 Degrees Diamond Insert Shape

Hover or click to zoom Tap to zoom
Key Features
  • Item: Indexable Cutting Head Unit
  • Shank Dia.: 40.00mm
  • Overall Length: 114.95mm
  • Cutting Direction: Left Hand
  • Insert Shape: 55 Degrees Diamond
  • Rake: -12 Degrees Radial, -5 Degrees Axial
  • Insert Size: 150408 (432)
  • Standards: ISO 26622
See full product details
$486.67
Join our email list for 10% off your first order
For 10% Off Your First Order
Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns 30-Day Returns
125 U.S.-Based Customer Service Agents 125 U.S.-Based Customer Service Agents

Specifications

Dimensions

Shank Dia. 40.00mm
Overall Length 114.95mm
Insert Size 150408 (432)
Insert Cutting Edge Length 15.04mm
Max. Bore Depth 76.02mm
Min. Bore Dia. 40.00mm
Connection Size KM40TS

Details

Item Indexable Cutting Head Unit
Cutting Direction Left Hand
Insert Shape 55 Degrees Diamond
ANSI Code KM40TSS32GMDUNL15
Rake -12 Degrees Radial, -5 Degrees Axial
Standards ISO 26622
Coolant Fed Coolant Through
Approach Angle 93 Degrees
Number of Coolant Holes 1
Insert Clearance Angle 0 Degrees
Insert Holding Type Clamp and Lock Pin
Cutting Application Boring
Insert Style DN
ISO Number KM40TSS32GMDUNL15
Center to Cutting Tip 22.00mm
Side Cutting Edge Angle -3 Degrees

Description

Indexable Cutting Head Unit, Insert Shape 55 Degrees Diamond, Overall Length 114.95mm, KM40TSS32GMDUNL15, 93 Degrees , 22.00mm, Coolant Through, Boring, Left Hand
