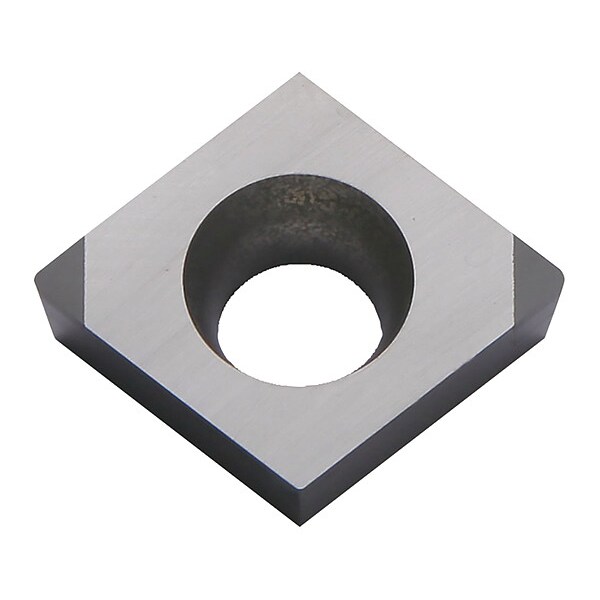

Kyocera Diamond Turning Insert, Diamond, 3, 1 CCMW3251MEFKBN475 - main

Diamond Turning Insert, Diamond, 3, 1

  • Mfr # CCMW3251MEFKBN475

  • Zoro # G7419363

product price: $88.45
/ea
Free Shipping & Returns

Key Features

Insert Shape
Diamond
Inscribed Circle
3
Chip-Breaker
Yes
Corner Radius
1
Rake
Positive
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CCMW3251MEFKBN475
Zoro #
G7419363
UPC #
-
Country of Origin
Multiple

Dimensions

Corner Radius
1
Thickness
2.5
Through Hole Inside Dia.
0.1732"

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Inscribed Circle
3
Chip-Breaker
Yes
Rake
Positive
ISO Number
CCMW09T304MEF
Cutting Direction
Neutral
Features
Excellent Wear Resistance Due to High CBN Content and Special Binder
Manufacturer Grade
KBN475
Cutting Application
Boring, External Turning, Facing, Internal Facing
Measurement System
Fractional Inch
General Shape
Diamond
Clearance Angle
7 Degrees
Included Angle
80 Degrees
Chip-Breaker Style
Finishing
Insert Holding Type
Screw
Shape
Diamond
Chip-Breaker Code
ME
Primary Material Application
Cast Iron
Material - Machining
CBN
ANSI Code
CCMW3251MEF
Hole Type
40 Degrees to 60 Degrees Countersink Through Hole
Number of Cutting Edges
2
Primary Material Application ISO Code
K

Description

Diamond Turning Insert, Chip-Breaker Code ME, Inscribed Circle 3/8 in, ANSI Code CCMW3251MEF, Chip-Breaker Style Finishing, Clearance Angle 7 Degrees

Restrictions

WARNING: This product can expose you to chemicals including Cobalt metal powder, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
