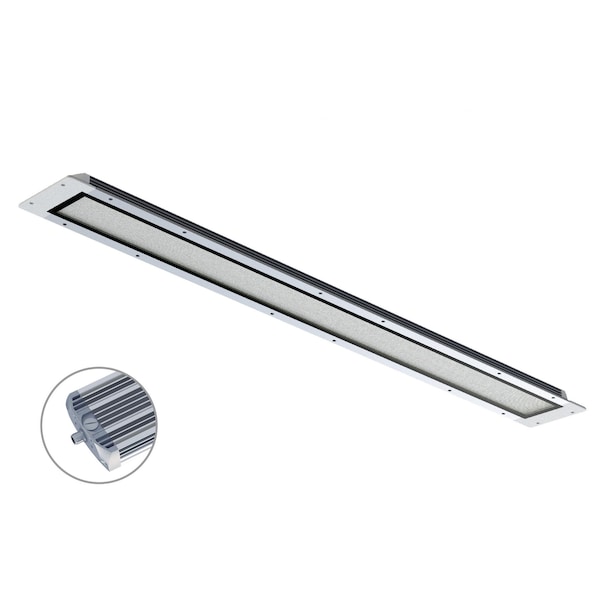

FIELDLED EVO 1040 96 Recessed, 1040 mm 40, 94'', 24V DC, M12-A Front Side

LED machine light FIELDLED EVO Recessed with a recessed housing of 96 mm width, 1040 mm length and approx. 30 mm depth. The connection via M12 plug A-coded is located on the side of the front. The integrated mounting frame with 6.5 mm holes for fixing has a width of 132 mm, a length of 1096 mm and a depth of 5.6 mm.The FIELDLED EVO Recessed is a very bright luminaire for the installation of shafts in machines and plants. The LED machine luminaire provides homogeneous, flicker-free and glare-free illumination of large-volume systems and machines. The machine light can be used in harsh production conditions, such as machining. A toughened safety glass bonded into the metal housing and high-quality seals protect against chips and coolant/lubricant emulsion. The FIELDLED EVO can be retrofitted into almost any standard machine shaft by inserting the mounting housing into the shaft and securing the luminaire via the mounting frame. The recessed luminaire accepts 24V DC machine current via a reverse polarity protected M12 connector. Depending on the variant, the connection is located on the rear or on the front of the FIELDLED EVO. The recessed luminaire is available in four lengths. The recessed housing of the LED machine light FIELDLED EVO has a width of 96 mm and a depth of approx. 30 mm.
