Right Angle Gearmotors, 90V
- Mfr # M1135041.00
- Zoro # G2482152
product price:Â
$
735.99
/ea
Free Shipping & Returns
Key Features
Maximum Torque
13 in-lb
Output Shaft Height
1.67 in
Motor Enclosure
Totally Enclosed Nonventilated
Input Horsepower
1/8 hp
Keyway Type
Square
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- M1135041.00
- Zoro #
- G2482152
- UPC #
- 691720091616
- Country of Origin
- United States
Dimensions
- Output Shaft Height
- 1.67 in
- Length Less Shaft
- 8.88 in
- Output Shaft Length
- 1 13/16 in
- Overall Width
- 4.09 in
- Fits Chest Size
- Lubrication is Permanent Semi-Fluid Grease
- Overall Height
- 6.61 in
- Keyway Length
- 1 1/2 in
- Output Shaft Diameter
- 5/8 in
- Overall Length
- 10.64 in
- Keyway Depth
- 1 1/4 in
- Keyway Width
- 3/16 in
- Length
- 10.64 in
Description

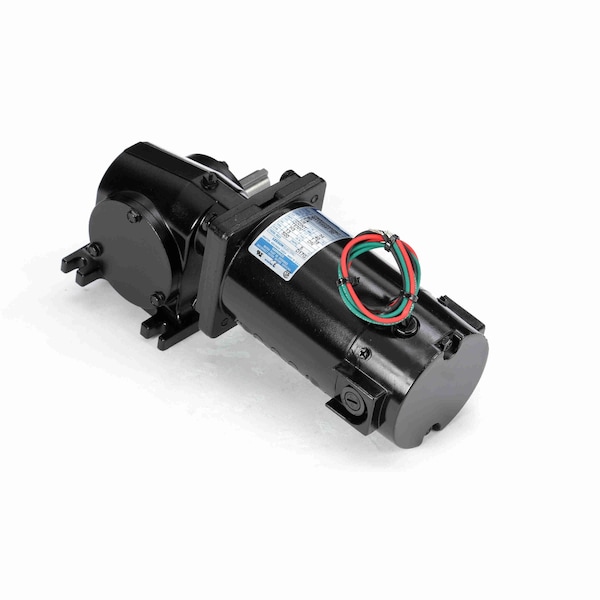

Right Angle Gearmotors, Shaft Orientation Right Angle, Motor Enclosure Totally Enclosed Nonventilated, Operating Voltage 90V DC, Motor Type Permanent Magnet DC, Nameplate Speed 500 RPM, Maximum Torque 13 in-lb, Starting Torque 13 in-lb, Overhung Load Capacity 235 lb, Rotation CW/CCW, Output Shaft Height 1.67 in, Mounting Orientation Horizontal, Gear Ratio 5:1, Input Horsepower 1/8 hp, Motor Insulation Class H, Efficiency 35.7 Percent, Output Shaft Diameter 5/8 in
