  11. 50 Hz Motor, 1 1/2 HP, 1425,110/220 V, 56H

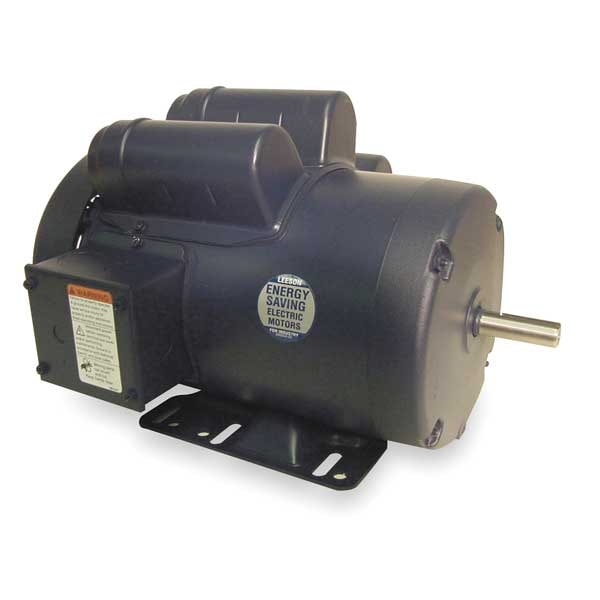

Leeson 50 Hz Motor, 1 1/2 HP, 1425,110/220 V, 56H 110424.00 - main

50 Hz Motor, 1 1/2 HP, 1425,110/220 V, 56H

  • Mfr # 110424.00

  • Zoro # G1541127

product price: $742.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
Motor Enclosure Design
Totally Enclosed Fan Cooled
Frame
56H
Phase
Single
Motor Thermal Protection
None
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
110424.00
Zoro #
G1541127
UPC #
691720008829
Country of Origin
United States

Dimensions

Length Less Shaft
11 3/4 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Overall Length
13 1/2 in

Details

Motor Design
Capacitor-Start
Motor Enclosure Design
Totally Enclosed Fan Cooled
Frame
56H
Phase
Single
Motor Thermal Protection
None
Motor Mounting Type
Rigid Base
Full Load Amps
17.2/8.6 A
Motor Mounting Position
Horizontal
Motor Bearings
Ball
Motor Application
General Purpose
Ins. Class
F
Motor Service Factor
1
No. of Speeds
1
Motor Shaft Rotation
CW/CCW
RPM Range
1,401-1,500
Footnotes
24
Motor Shaft Design
Keyed
Ambient Temperature
40 Degrees C
Hz
50 Hz
Voltage Compatibility
110/220-230V AC, 110/220V AC
Item
50 Hz Motor
Nominal Efficiency
76 %
Max. Ambient Temp.
40 Degrees C
Usable @ 200V
Not Usable at 200V
Motor Frame Material
Steel
NEMA Design
None
Full Load Amps @ 50Hz
17.2/8.6 A
Usable @ 208V
Not Usable at 208V
HP @ 50Hz
1 1/2 hp
Standards
CE Certified, CSA Certified, UL Listed
Voltage @ 50Hz
110/220V AC
Duty Cycle
Continuous
Weight
50 lb
RPM @ 50Hz
1,425 RPM
Service Factor @ 50Hz
1

Description

50 Hz Motor, Single Phase, Motor Design Capacitor-Start, Not Applicable HP, Nameplate RPM Not Applicable, No. of Speeds 1, Voltage Not Applicable, Full Load Amps 17.2/8.6 A, 56H Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 50 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design None, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
