Shop LEESON

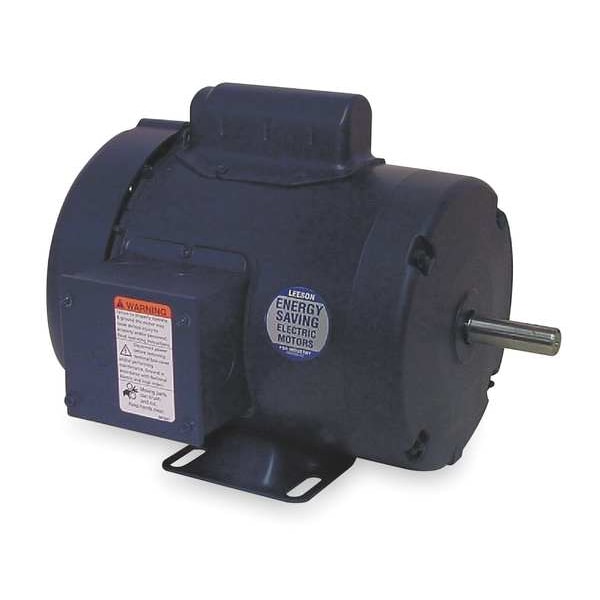

50 Hz Motor, 1/2 HP, 1425,110/220v, 56, TEFC

  • Mfr # 110064.00

  • Zoro # G3278782

product price:  $477.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
Motor Enclosure Design
Totally Enclosed Fan Cooled
Frame
56
Phase
Single
Motor Thermal Protection
None
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
110064.00
Zoro #
G3278782
UPC #
691720007747
Country of Origin
United States

Dimensions

Shaft Length
1 7/8 in
Length Less Shaft
9 3/4 in
Shaft Dia.
5/8 in
Overall Length
11 1/2 in
Wire Rope Length
11 1/2 in
Frame Size
56
Shaft Diameter
5/8 in

Details

Motor Design
Capacitor-Start
Motor Enclosure Design
Totally Enclosed Fan Cooled
Frame
56
Phase
Single
Motor Thermal Protection
None
Motor Mounting Type
Rigid Base
Full Load Amps
8.2/4.1 A
Motor Service Factor
1
Motor Bearings
Ball
Motor Shaft Rotation
CW/CCW
Item
50 Hz Motor
Ins. Class
B
Motor Shaft Design
Keyed
RPM Range
1,401-1,500
Voltage Compatibility
110/220-230V AC, 110/220V AC
Hz
50 Hz
No. of Speeds
1
Motor Mounting Position
Horizontal
Ambient Temperature
40 Degrees C
Motor Application
General Purpose
Nominal Efficiency
69 %
Max. Ambient Temp.
40 Degrees C
Weight
28 lb
Full Load Amps @ 50Hz
8.2/4.1 A
RPM @ 50Hz
1,425 RPM
Duty Cycle
Continuous
Voltage @ 50Hz
110/220V AC
Motor Frame Material
Steel
NEMA Design
None
HP @ 50Hz
1/2 hp
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Service Factor @ 50Hz
1
Standards
CE Certified, CSA Certified, UL Listed
Number of Speeds
1
Nameplate Service Factor @ 60 Hz
1
Nameplate Service Factor @ 50 Hz
1
Full Load Current @ 50 Hz
8.2/4.1 A
Nameplate Horsepower @ 50 Hz
1/2 hp
Product Type
50 Hz Motor
Frequency
50 Hz
Efficiency Rating
Standard Efficiency (IE1)
Nameplate Voltage @ 50 Hz
110/220V AC
Motor Enclosure Type
Totally Enclosed Fan Cooled
Full Load Current @ 60 Hz
8.2/4.1 A
Bearing Type
Ball
Frame Material
Steel
Application
General Purpose
Ambient Temperature - Maximum
40 Degrees C
Insulation Class
B
Mounting Position
Horizontal
Shaft Design
Keyed
Nameplate RPM @ 50 Hz
1,425 RPM

Description

50 Hz Motor, Single Phase, Motor Design Capacitor-Start, Not Applicable HP, Nameplate RPM Not Applicable, No. of Speeds 1, Voltage Not Applicable, Full Load Amps 8.2/4.1 A, 56 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 50 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, NEMA Design None, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
