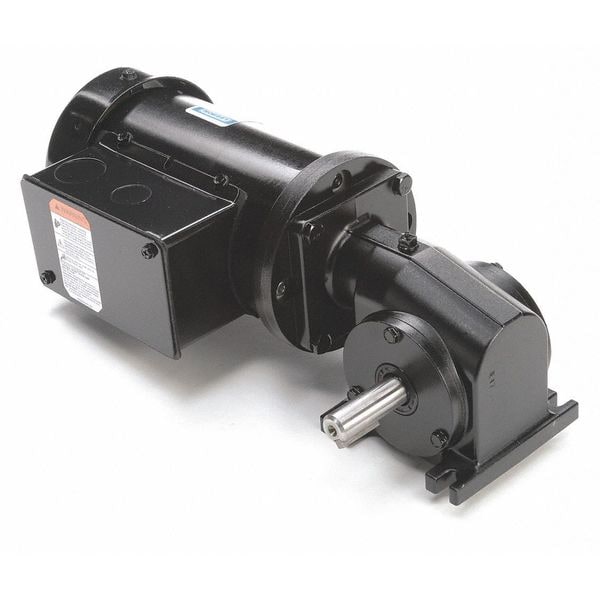

AC Gearmotor, 138 in-lb Max. Torque, 86 RPM Nameplate RPM, 208-230V AC Voltage, 3 Phase

  • Mfr # M1145129.00

  • Zoro # G1237117

product price:  $860.99
/ea
Free Shipping & Returns

Key Features

Gearmotor Voltage
208-230V AC
Gearmotor Phase
3
Gearmotor Type
AC Gearmotor
Max. Torque
138 in-lb
Gearmotor Shaft Type
Single Right
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M1145129.00
Zoro #
G1237117
UPC #
691720346952
Country of Origin
United States

Dimensions

Length Less Shaft
12.31 in
Keyway Size Type
0.18 sq in x 1 in
Dimension S
0.187 in
Dimension A
3.84 in
Dimension B
3.88 in
Dimension U
5/8 in
Dimension C
12.31 in
Dimension AA
0.88 in
Dimension F
3 in
Dimension D
1.67 in
Dimension AB
3.73 in
Dimension N
1.8 in
Dimension X
4-1/2 in
Height (Dimension O)
5.22 in
Dimension H
0.31 in
Keyway Size
0.18" Square x 1"
Shaft Dia. (Dimension U)
5/8 in
Dimension E
1.5 in
Shaft Length (Dimension V)
1.5 in
Dimension BA
1.75 in
Overall Length
12.31 in
Output Shaft Length
1 13/16 in
Mount Hole Center-to-Center Length
3 in
Mount Hole Center-to-Center Width
3.25 in
Overall Width
5.81 in
Overall Height
5.2 in
Output Shaft Diameter
5/8 in
Wire Rope Length
12.31 in

Details

Item
AC Gearmotor
Gearmotor Voltage
208-230V AC
Gearmotor Phase
3
Gearmotor Type
AC Gearmotor
Max. Torque
138 in-lb
Gearmotor Shaft Type
Single Right
Gearmotor Shaft Orientation
Right Angle
Nameplate RPM
86 RPM
Gearmotor Enclosure
Totally Enclosed Fan-Cooled
Gearmotor Rotation
CW/CCW
Gearmotor Brake Type
None
Gearmotor Mounting Position
Horizontal or Vertical Shaft Down
Full Load Amps
1.3 A
Standards
CE Y, CSA Y, UL
Input HP
3/8 hp
Housing
Rolled Steel
Voltage
208-230
Lubrication
Permanent Heavy Duty Gear Oil
Phase
Three
Finish
Black High Gloss Enamel
Bearings
Gearbox: Heavy Duty, Needle Roller. Motor: Heavy Duty Ball
Thermal Protection
None
RPM Range
76 to 100
Gears
Hardened Steel Worm with Bronze Worm Wheel
Hz
60 Hz
Seals
Heavy Duty, Single Lip, Spring Loaded
Gear Case Material
Die Cast Aluminum
Gear Material
Hardened Steel
Overhung Load
235 lb
Service Factor
1
Rotation
CW/CCW
Max. Ambient Temp.
40 Degrees C
Insulation Class
F4
Gear Ratio
20:1
Enclosure
TEFC
Shaft Orientation
Right Angle
Mounting
All Position Except Shaft Up
Motor Type
3-Phase
No Load RPM
89 RPM
Gear Type
Worm, Worm Wheel
Application
Inverter Duty
Housing Material
Rolled Steel
Motor Frame Designation
38
Housing Material Finish
Black High Gloss Enamel
Seal Type
Heavy Duty, Single Lip, Spring Loaded
Bearing Type
Gearbox: Heavy Duty, Needle Roller. Motor: Heavy Duty Ball
Keyway Type
0.18 sq in x 1 in
No Load Speed
89 RPM
Operating Voltage
208-230V AC
Nameplate Speed
86 RPM
Frequency
60 Hz
Brake Type
None
Motor Insulation Class
F
Overhung Load Capacity
235 lb
Motor Duty Class
Continuous
Mount Type
Horizontal or Vertical Shaft Down
Inverter Rating
20:1
Mounting Orientation
Horizontal, Vertical with Shaft Down
Output Location
Right Hand
Maximum Ambient Temperature
104 Degrees F
Motor Enclosure
Totally Enclosed Fan-Cooled
Maximum Torque
138 in-lb
Maximum Output Speed
86 RPM
Full Load Current
1.4-1.3 A
Inverter Rated
Yes
Number of Output Shafts
1
Input Horsepower
0.375 hp

Description

AC Gearmotor, Number of Output Shafts 1, Motor Type 3-Phase, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 86 RPM, Maximum Torque 138 in-lb, Overhung Load Capacity 235 lb, Rotation CW/CCW, Mounting Orientation Horizontal, Vertical with Shaft Down, Operating Voltage 208-230V AC, Inverter Rated Yes, Gear Ratio 20:1, Brake Type None, Output Location Right Hand, Shaft Orientation Right Angle, Motor Insulation Class F, Motor Duty Class Continuous, Application Inverter Duty
