  11. Boat Hoist Motor, 1-1/2hp, 1725RPM
No Product Image Available

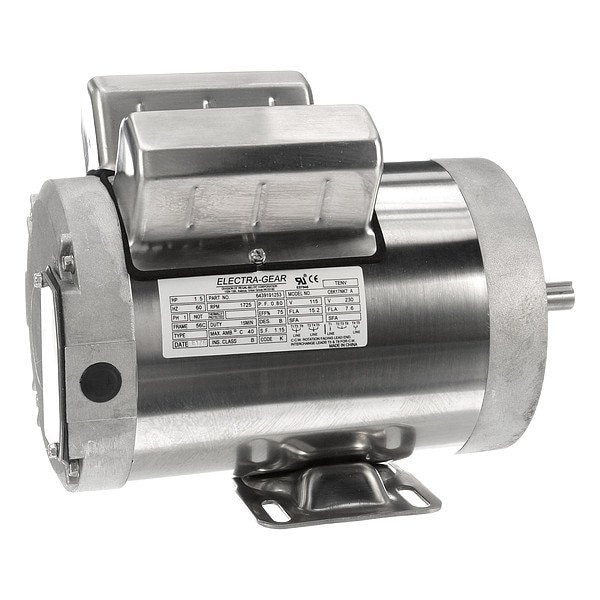

Boat Hoist Motor, 1-1/2hp, 1725RPM

  • Mfr # 6439191253

  • Zoro # G311930581

product price: $1,613.99
/ea
Free Shipping & Returns

Key Features

HP
1 1/2 hp
Nameplate RPM
1,725 RPM
Shaft Dia.
5/8 in
Voltage
115/230V AC
Frame
56C
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6439191253
Zoro #
G311930581
UPC #
691720000281
Country of Origin
China

Dimensions

Shaft Dia.
5/8 in
Overall Length
12 5/8 in
Shaft Length
1 7/8 in
Length Less Shaft
10 3/4 in
Stud Size
4 3/8"-16

Details

HP
1 1/2 hp
Nameplate RPM
1,725 RPM
Item
Boat Hoist Motor
Voltage
115/230V AC
Frame
56C
Motor Design
Capacitor-Start
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Ins. Class
B
Standards
CE, CSA, UL
Motor Shaft Rotation
CW/CCW
RPM Range
1,701-1,800
Motor Application
Boat Hoist
Voltage Compatibility
115/230V AC
Hz
60 Hz
Motor Mounting Type
C-Face, Rigid Base
Motor Thermal Protection
None
Motor Bearings
Ball
Motor Mounting Position
Horizontal
Motor Service Factor
1.15
Max. Ambient Temp.
40 Degrees C
Full Load Amps
15.2/7.6 A
Phase
Single
Motor Sub Application
General Purpose
Nominal Efficiency
75 %
No. of Speeds
1
Usable @ 200V
Not Usable at 200V
Motor Frame Material
Stainless Steel
Usable @ 208V
Not Usable at 208V
Conduit Box Position
F1
Duty Cycle
Intermittent
Weight
40 lb

Description

Boat Hoist Motor, Conduit Box Position F1, Duty Cycle Intermittent, Frame 56C, Hz 60 Hz, Full Load Amps 15.2/7.6 A, HP 1 1/2 hp, Ins. Class B, Length Less Shaft 10 3/4 in, Max. Ambient Temp. 40 Degrees C, Motor Application Boat Hoist, Motor Bearings Ball, Motor Design Capacitor-Start, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Frame Material Stainless Steel, Motor Mounting Position Horizontal, Motor Mounting Type C-Face, Rigid Base, Motor Service Factor 1.15
