Shop MARATHON

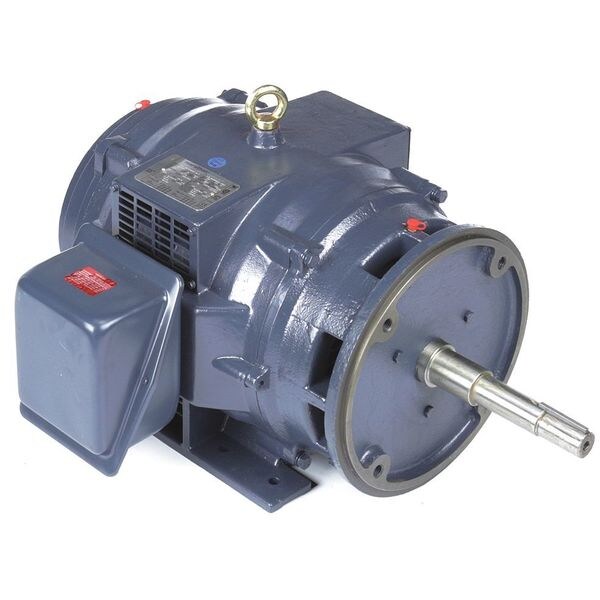

CC Pump Motor, 3-Phase, 25 HP, 1750 rpm

  • Mfr # 284TTDBD6037

  • Zoro # G2219701

product price:  $2,650.99
/ea
Additional $235.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
HP
25
RPM Range
1,701-1,800
Nameplate RPM
1,775
Voltage
230/460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
284TTDBD6037
Zoro #
G2219701
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Length
29 1/2 in
Shaft Dia.
1 1/4 in
Shaft Length
8 1/2 in
Length Less Shaft
21 1/8 in
Height
15 in
Bolt Circle Dia.
11 in
Bolt Circle Diameter
11 in
Frame Size
284JP
Shaft Diameter
1 1/4 in

Details

Item
Close-Coupled Pump Motor
Motor Design
Three-Phase
HP
25
RPM Range
1,701-1,800
Nameplate RPM
1,775
Voltage
230/460V AC
Frame
284JP
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Full Load Amps
62.5/31.0 A
Motor Shaft Design
Keyed, Threaded
Ins. Class
F
Motor Application
Pump
Motor Enclosure Design
Open Dripproof
Motor Bearings
Ball
CC Number
CC003A
Nominal Efficiency
93.6 %
Motor Efficiency Group
NEMA Premium Efficient
Frame Material
Cast Iron
Phase
Three
Hz
60 Hz
Motor Thermal Protection
None
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Duty
Continuous
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Standards
CE Mark, CSA Certified, UL Recognized
Motor Sub Application
Close-Coupled Pump
Motor Shaft Rotation
CW/CCW
Inverter Rated
Inverter Rated
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 208V
Not Usable at 208V
No. of Speeds
1
Motor Mounting Position
Horizontal
Weight
426 lb
Inverter Rating
10:1 Variable Torque, 2:1 Constant Torque
NEMA Design
B
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Conduit Box Location
Exterior
Conduit Box Position
F1, F2
Shaft Type
Keyway and Internal Thread
Bearing Type
Ball
Full Load Current @ 60 Hz
62.5/31.0 A
Nameplate Service Factor @ 60 Hz
1.15
Frequency
60 Hz
Number of Speeds
1
Shaft Thread Type
JP
Insulation Class
F
NEMA Design Class
B
Motor Enclosure Type
Open Drip Proof
Constant Torque Rating
2:1 Constant Torque
Efficiency Rating
Premium Efficiency (IE3)
Product Type
Pump Motor
Shaft Design
Keyed
Application
Pump
Ambient Temperature - Maximum
40 Degrees C
Mounting Position
Horizontal

Description

Close-Coupled Pump Motor, Bolt Circle Dia. 11 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 284JP, Hz 60 Hz, Full Load Amps 62.5/31.0, Height 15 in, HP 25, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque, Length Less Shaft 21 1/8 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase, Motor Efficiency Group NEMA Premium Efficient
