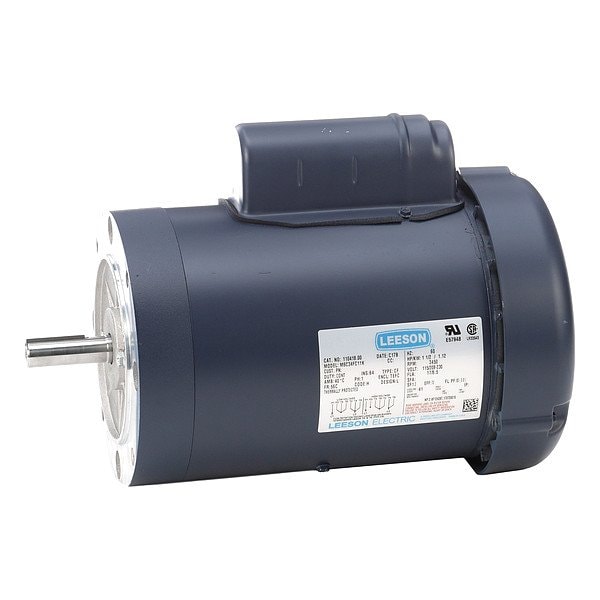

Capacitor-Start General Purpose Motor, 1 1/2 hp HP, 56C Frame, 115/208-230V AC Voltage
Mfr # 110418.00
Zoro # G011931444
product price:Â $661.99
/ea
Free Shipping & Returns
Key Features
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
C-Face, Rigid Base
HP
1 1/2 hp
RPM Range
3450
Voltage
115/208-230V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 110418.00
- Zoro #
- G011931444
- UPC #
- 691720008768
- Country of Origin
- United States
Dimensions
- Shaft Length
- 2 1/16 in
- Overall Length
- 12 1/2 in
- Length Less Shaft
- 10 7/16 in
- Shaft Dia.
- 5/8 in
- Frame Size
- 56C
- Shaft Diameter
- 5/8 in
- Wire Rope Length
- 12 1/2 in
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1 1/2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 17.0/9.0-8.5 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class B, NEMA Design L, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
