Shop LEESON

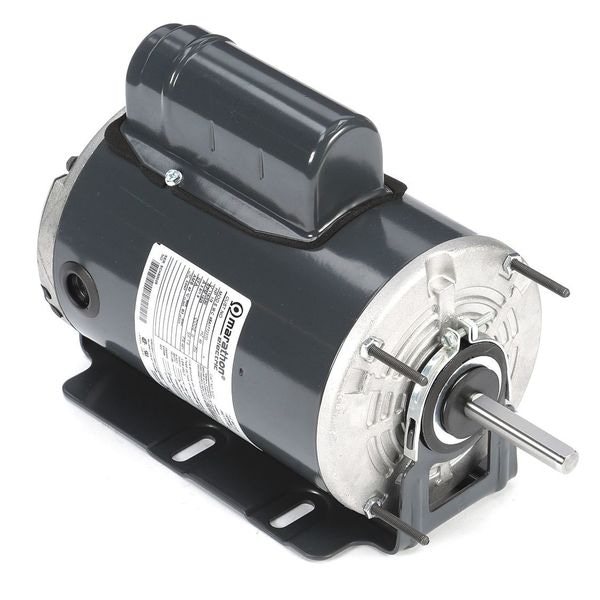

Permanent Split Capacitor General Purpose Farm Duty Motor, 1/3 HP, 48Y Frame, 115/230V AC Voltage

  • Mfr # 048A17T237

  • Zoro # G5489547

product price:  $268.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Totally Enclosed Air-Over
HP
1/3 hp
No. of Speeds
1
RPM Range
1,601-1,700
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
048A17T237
Zoro #
G5489547
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Overall Length
11 13/16 in
Shaft Length
2 1/2 in
Length Less Shaft
9 1/4 in
Stud Size
#10-32
Body Dia.
5-11/16"
Resilient Ring Dia.
2 1/4 in

Details

Item
Farm Duty Motor
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Totally Enclosed Air-Over
HP
1/3 hp
No. of Speeds
1
RPM Range
1,601-1,700
Nameplate RPM
1,625 RPM
Voltage
115/230V AC
Frame
48Y
Motor Mounting Type
Cradle Base
Motor Thermal Protection
Auto
Motor Service Factor
1
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Phase
Single
Motor Application
Agriculture
Motor Sub Application
Direct Drive Fan/Blower
Motor Mounting Position
Horizontal
Frame Material
Rolled steel
Nominal Efficiency
66 %
Item - Farm Duty Motors
General Purpose Farm Duty Motor
Duty
Continuous
Motor Bearings
Ball
Motor Shaft Rotation
CW/CCW
Motor Frame Material
Steel
Hz
60 Hz
Ins. Class
B
Full Load Amps
3.8/1.9 A
Standards
CSA Certified, UL Recognized
Max. Ambient Temp.
40 Degrees C
Motor Shaft Design
Flat
Mounting Stud Pattern
1 11/25 in x 5 3/25 in
Usable @ 208V
Not Usable at 208V
Capacitor Required
Capacitor Included
Usable @ 200V
Not Usable at 200V
Weight
23 lb
Duty Cycle
Continuous
Extended Thru-Bolts
Yes
Drive Type
Direct Drive
Ring to Ring Center
8-20/23"

Description

Farm Duty Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 1,625 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 3.8/1.9 A, 48Y Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Cradle Base
