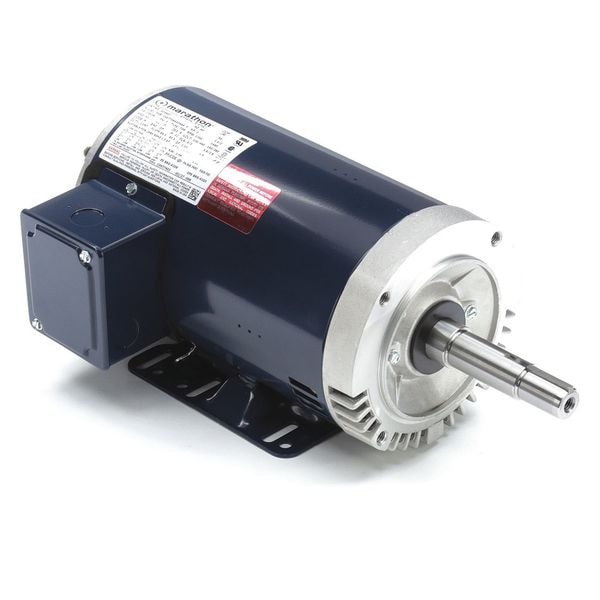

Close-Coupled Pump Motor, 3-Phase, 2 HP

  • Mfr # 145TTDR6036

  • Zoro # G5655361

product price:
$
502.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
HP
2 hp
RPM Range
1,701-1,800
Nameplate RPM
1,750
Voltage
230/460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
145TTDR6036
Zoro #
G5655361
UPC #
-
Country of Origin
United States
Item
Close-Coupled Pump Motor
Motor Design
Three-Phase
HP
2 hp
RPM Range
1,701-1,800
Nameplate RPM
1,750
Voltage
230/460V AC
Frame
145JM
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Phase
Three
Motor Frame Material
Steel
Hz
60 Hz
Max. Ambient Temp.
40 Degrees C
Motor Shaft Design
JM Threaded
Motor Application
Pump
Full Load Amps
6.0/3.0 A
Motor Bearings
Ball
Ins. Class
F
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Standards
CE Mark, CSA Certified, UL Recognized
Duty
Continuous
Inverter Rated
Inverter Rated
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Open Dripproof
Motor Thermal Protection
None
Frame Material
Steel
CC Number
CC003A
Nominal Efficiency
86.5 %
Motor Sub Application
Close-Coupled Pump
Green Certification or Other Recognition
NEMA Premium(R) Rated
Weight
42 lb
Usable @ 200V
Not Usable at 200V
Conduit Box Position
F1
Usable @ 208V
Not Usable at 208V
Inverter Rating
10:1 Variable Torque, 2:1 Constant Torque
Conduit Box Location
Exterior
No. of Speeds
1
Duty Cycle
Continuous
NEMA Design
B
Motor Mounting Position
Horizontal
Shaft Type
Keyed
Number of Wires
9
Full Load Current @ 60 Hz
6.0/3.0 A
Efficiency Rating
Premium Efficiency (IE3)
NEMA Design Class
B
Mounting Position
Horizontal
Frequency
60 Hz
Bearing Type
Ball
Number of Speeds
1
Insulation Class
F
Nameplate Service Factor @ 60 Hz
1.15
Product Type
Pump Motor
Application
Pump
Shaft Design
Threaded
Ambient Temperature - Maximum
40 Degrees C
Constant Torque Rating
2:1 Constant Torque
Motor Enclosure Type
Open Drip Proof
Shaft Thread Type
JM

Description

Close-Coupled Pump Motor, Body Dia. 6.5 in, Bolt Circle Dia. 5 7/8 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 145JM, Hz 60 Hz, Full Load Amps 6.0/3.0, Height 6 11/16 in, HP 2, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque, Length Less Shaft 11 3/8 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase
