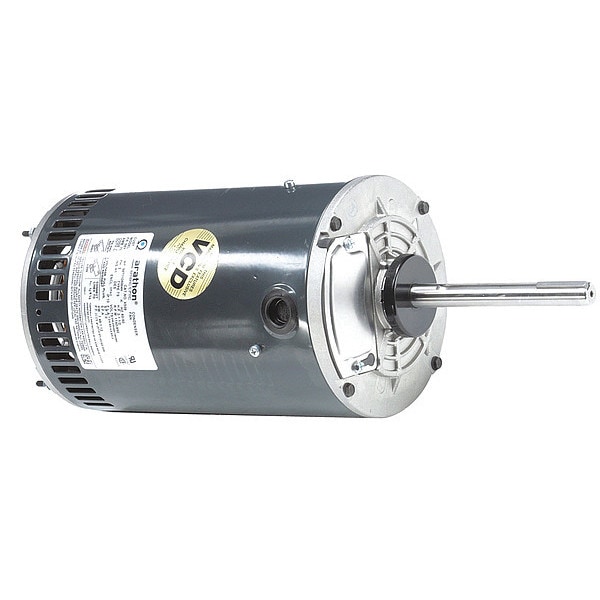

Condenser Fan Motor, 2 HP, 56Y Frame
Mfr # 056T11O5304
Zoro # G7263538
product price: $454.99
/ea
Free Shipping & Returns
Key Features
Motor Design
3-Phase
Phase
Three
HP
2
RPM Range
1,101-1,200
No. of Speeds
1
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
056T11O5304
Zoro #
G7263538
UPC #
-
Country of Origin
Mexico
Dimensions
Shaft Dia.
5/8 in
Shaft Length
5 in
Manufacturers Warranty Length
1 yr
Length Less Shaft
11 1/16 in
Body Dia.
6 1/2 in
Overall Length
17 1/16 in
Description
Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 200-230/460V AC, 7.2-6.8/3.4 A Full Load Amps, 56Y Frame, Output Watts 1500 W, 60/50 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class H, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Belly Band
