Shop FASCO

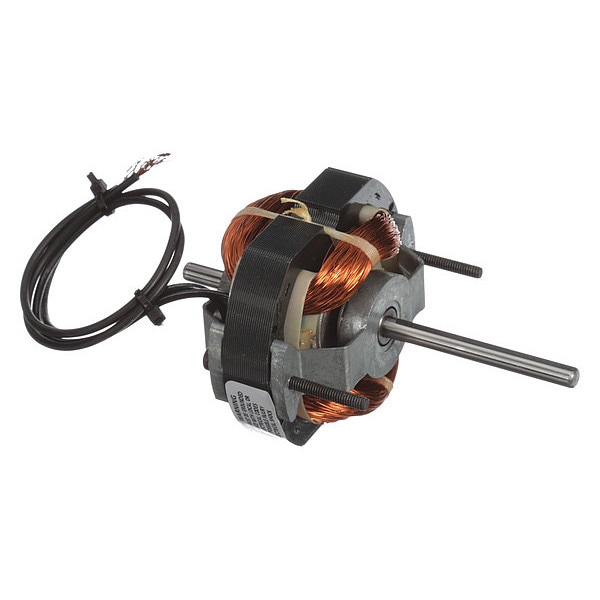

HVAC Motor, 1/85 HP, 3000 rpm, 115V, 3.3

  • Mfr # D200

  • Zoro # G5734732

product price:  $74.89
/ea

Key Features

Voltage
115V AC
Nameplate RPM
3,000
Motor Enclosure Design
Open
Number of Speeds
1
HP
1/85
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D200
Zoro #
G5734732
UPC #
815585028918
Country of Origin
Mexico

Dimensions

Length Less Shaft
2 1/4 in
Shaft Dia.
1/4 in
Shaft Length
2 3/8 in
Body Dia.
3 5/16 in
Bolt Circle Dia.
2 7/8 in
Overall Length
5 3/16 in
Lead Length
12 in
Stud Size
#8-32
Shaft Diameter
1/4 in
Frame Size
3.3
Bolt Circle Diameter
2 7/8 in
Body Diameter
3.3 in
Mounting Stud Thread Size
#8-32
Wire Rope Length
5 3/16 in

Details

Voltage
115V AC
Nameplate RPM
3,000
Motor Enclosure Design
Open
Number of Speeds
1
HP
1/85
RPM Range
1,801-3,000
Max. Ambient Temp.
40 Degrees C
Motor Application
HVAC/R
Motor Design
Shaded Pole
Ins. Class
B
Motor Shaft Rotation
CWSE
Motor Shaft Design
Flat
Motor Mounting Type
Ring/Stud
Hz
60 Hz
Phase
Single
Motor Sub Application
Direct Drive Fan/Blower
Motor Service Factor
1
Stud/Base Mtg. Pattern
2-7/8 in x 2-7/8 in
Frame
3.3
Motor Thermal Protection
Auto
Mounting Pattern
2-7/8 x 2-7/8
Application
Fan/Blower
Mounting Stud Location
2/Opposite Lead End
Motor Bearings
Sleeve
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Number of Shafts
2
Full Load Amps
0.62 A
Standards
CSA Certified, UL Recognized
Item
Fan and Blower Motor
Duty
Continuous
No. of Speeds
1
Capacitor Required
Capacitor Not Required
Usable @ 208V
Not Usable at 208V
Motor Mounting Position
All Angle
Mounting Holes
(2) #8-32
Usable @ 200V
Not Usable at 200V
Weight
2 lb
Mounting Stud Pattern
2 7/8 in x 2 7/8 in
Mounting
Stud
Wattage
10 W
Sub Application
General Purpose
Motor Enclosure Type
Open
Shaft Design
Flat
Bearing Type
Sleeve
Nameplate Service Factor @ 60 Hz
1
Full Load Current @ 60 Hz
0.62 A
Frame Material
Steel
Ambient Temperature - Maximum
40 Degrees C
Drive Type
Belt Drive
Insulation Class
B
Frequency
60 Hz
Product Type
Fan and Blower Motor

Description

Fan and Blower Motor, Single Phase, Motor Design Shaded Pole, 1/85 hp HP, Nameplate RPM 3,000 RPM, No. of Speeds 1, Voltage 115V AC, 0.62 A Full Load Amps, 3.3 Frame, Output Watts 10 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open, Motor Mounting Type Stud, Motor Frame Material Steel
