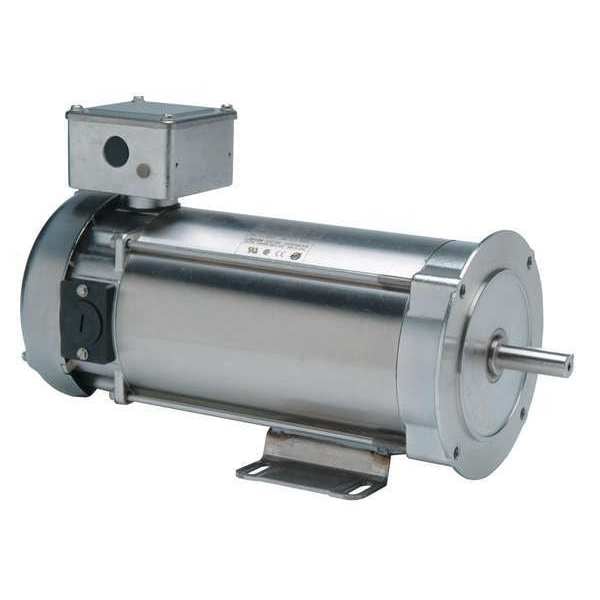

Leeson DC Washdown Motor, 1/4 HP, 11-13/16 in. L 109065.00 - main

DC Washdown Motor, 1/4 HP, 11-13/16 in. L

  • Mfr # 109065.00

  • Zoro # G4447996

product price:  $1,053.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Magnet DC
Phase
Single
HP
1/4
RPM Range
1,701-1,800
Voltage
90V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
109065.00
Zoro #
G4447996
UPC #
691720342909
Country of Origin
United States

Dimensions

Shaft Length
2 1/16 in
Body Dia.
6.5 in
Overall Length
11 13/16 in
Length Less Shaft
9 7/8 in
Shaft Dia.
5/8 in
Bolt Circle Dia.
5 7/8 in
Manufacturers Warranty Length
1 yr

Details

Item
DC Washdown Motor
Motor Design
Permanent Magnet DC
Phase
Single
HP
1/4
RPM Range
1,701-1,800
Voltage
90V DC
Frame
56C
Motor Frame Material
Stainless Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Nonventilated
Rotation
CW/CCW
Bearings
Ball
Standards
BISSC, CE, CSA, UL
Full Load Torque
9.0 in-lb
Features
Stainless Steel Fan Guards, Conduit Box Cover, Interior Surfaces Protected By Enamel/Polyester Coating
Motor Application
Washdown
Max. Ambient Temp.
40 Degrees C
Nameplate RPM
1,750
Motor Mounting Type
Face/Base
Full Load Amps
3.1 A
RPM Group
1701-1800
Ins. Class
F
Voltage Compatibility
90V DC
Brush Type
Carbon
Shaft Material
Stainless Steel
Nominal Efficiency
67.5 %
Motor Service Factor
1
Motor Shaft Rotation
CCW, CW
Motor Bearings
Ball
Conduit Box Location
Exterior
Usable @ 200V
No
Weight
38 lb
Duty Cycle
Continuous
Endshield Material
300 Stainless Steel
Usable @ 208V
No
No. of Speeds
1
Conduit Box Position
F3
Series
Washguard

Description

DC Washdown Motor,1/4 HP,1750,56C,90V
