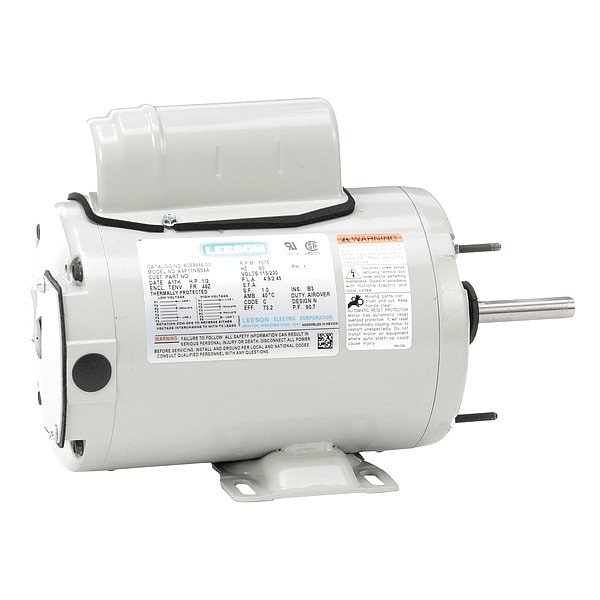

Farm Duty Motor, Permanent Split Capacitor, 1/2 HP, 115/230V AC, 1,075 Nameplate RPM, 48Z Frame
Mfr # A099946.00
Zoro # G112190429
product price:Â
$
472.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/2 hp
RPM Range
1,001-1,100
Voltage
115/230V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- A099946.00
- Zoro #
- G112190429
- UPC #
- 691720102947
- Country of Origin
- Mexico
Dimensions
- Overall Length
- 11 7/8 in
- Stud Size
- #10-32
- Length Less Shaft
- 9 11/16 in
- Shaft Length
- 2 1/4 in
- Shaft Dia.
- 1/2 in
- Bolt Circle Dia.
- 5 1/8 in
- Mounting Stud Length
- 1 in
- Wire Rope Length
- 11 7/8 in
Description
Farm Duty Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 4.9/2.45 A, 48Z Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base
