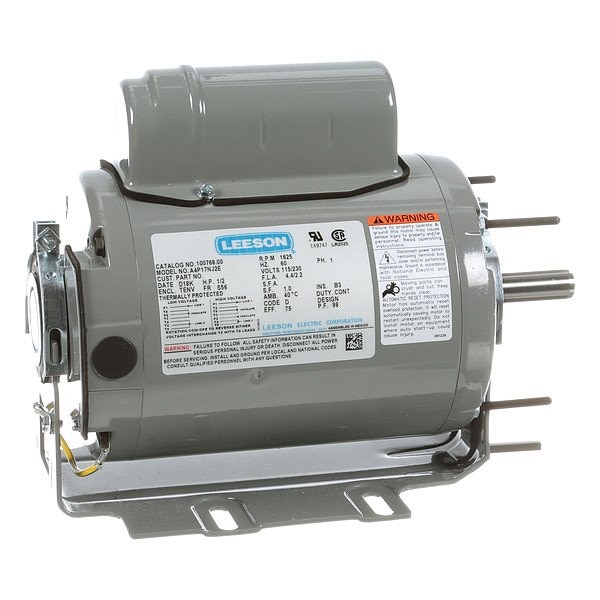

Farm Duty Motor, Permanent Split Capacitor, 1/2 HP, 115/230V AC, 1,625 Nameplate RPM, S56 Frame
Mfr # 100768.00
Zoro # G412190495
product price: $459.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/2
RPM Range
1,601-1,700
Voltage
115/230V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
100768.00
Zoro #
G412190495
UPC #
691720005064
Country of Origin
Mexico
Dimensions
Shaft Dia.
5/8 in
Bolt Circle Dia.
5 1/8 in
Length Less Shaft
8 15/16 in
Stud Size
#10-32
Overall Length
10 13/16 in
Shaft Length
1 7/8 in
Mounting Stud Length
1 in
Description
Farm Duty Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,625 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 4.4/2.2 A, 56 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type Cradle Base
