Shop LEESON

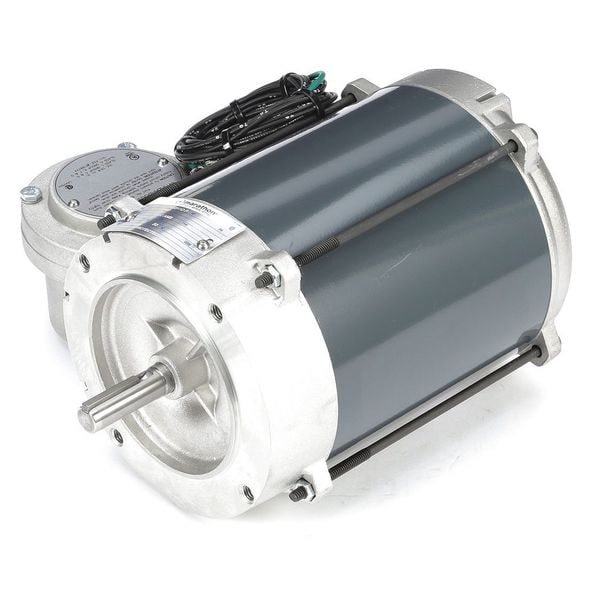

Hazardous Loc Mtr, 3-Ph, EPNV, 1/3 HP, T3B

  • Mfr # 056T17E5311

  • Zoro # G5774736

product price:  $590.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
1/3 hp
RPM Range
1,701-1,800
Voltage
208-230/460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
056T17E5311
Zoro #
G5774736
UPC #
-
Country of Origin
United States

Dimensions

Length Less Shaft
9 15/16 in
Overall Length
12 in
Lead Length
12 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Shaft Diameter
5/8 in
Frame Size
56C

Details

Motor Design
Three-Phase
Phase
Three
HP
1/3 hp
RPM Range
1,701-1,800
Voltage
208-230/460V AC
Frame
56C
Hazardous Location Class
Class I, Class II
Motor Thermal Protection
Auto
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Motor Mounting Type
C-Face
Temp. Code
T3B
Duty
Continuous
Nominal Efficiency
74.5 %
Motor Efficiency Group
Standard Efficient
Motor Frame Material
Steel
Motor Service Factor
1
Includes
Conduit Box
Motor Shaft Rotation
CW/CCW
Item
Hazardous Location Motor
Ins. Class
B
Standards
CSA Certified, UL Listed
Voltage Compatibility
208-220/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC, 208V AC, 220-230/460V AC, 220/460V AC, 230/460V AC, 230V AC, 240V AC, 460V AC
Motor Application
Hazardous Location
Nameplate RPM
1,725 RPM
Max. Ambient Temp.
40 Degrees C
Motor Shaft Design
Keyed
NEMA Design
B
Motor Bearings
Ball
Full Load Amps
1.2-1.2/0.60 A
Hz
60 Hz
Frame Material
Steel
Usable @ 200V
Not Usable at 200V
Conduit Box Location
Exterior
Weight
1,212 lb
Hazardous Location Division
Division I
Usable @ 208V
Usable at 208V
Duty Cycle
Continuous
No. of Speeds
1
Motor Mounting Position
Horizontal
Hazardous Location Group
Group C, Group D, Group F, Group G
Frequency
60 Hz
Temperature Code
T3B
Product Type
Hazardous Location Motor
Application
Hazardous Location
Bearing Type
Ball
Efficiency Rating
Standard Efficiency (IE1)
Shaft Design
Keyed
Ambient Temperature - Maximum
40 Degrees C
Nameplate Service Factor @ 60 Hz
1
Mounting Position
Horizontal
NEMA Design Class
B
Number of Speeds
1
Motor Enclosure Type
Totally Enclosed Non-Ventilated
Insulation Class
B
Full Load Current @ 60 Hz
1.2-1.2/0.60 A

Description

Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 1.2-1.2/0.60 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Non-Ventilated, Duty Cycle Continuous
