  11. HazardousLocationMotor, 3/4hp, 1725RPM
No Product Image Available

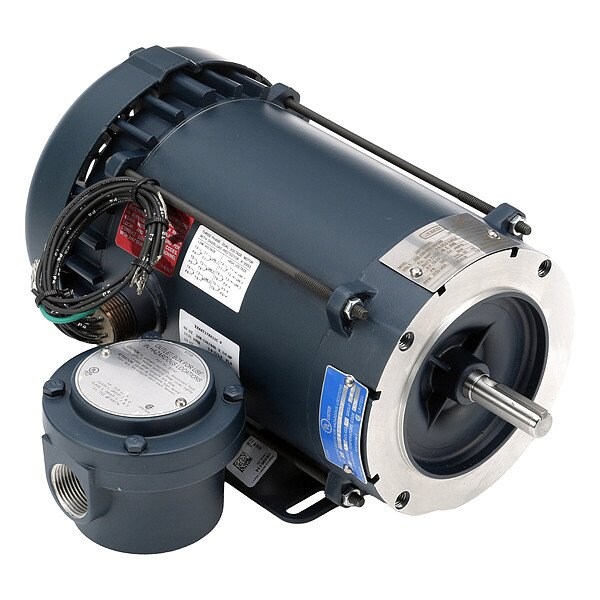

HazardousLocationMotor, 3/4hp, 1725RPM

  • Mfr # 114630.00

  • Zoro # G711930105

product price: $1,135.99
/ea
Free Shipping & Returns

Key Features

HP
3/4 hp
Nameplate RPM
1,725 RPM
Shaft Dia.
5/8 in
Voltage
208-230/460V AC
Frame
56C
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
114630.00
Zoro #
G711930105
UPC #
691720014172
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Length Less Shaft
12 1/16 in
Shaft Length
1 7/8 in
Overall Length
13 15/16 in
Lead Length
6 in

Details

HP
3/4 hp
Nameplate RPM
1,725 RPM
Item
Hazardous Location Motor
Voltage
208-230/460V AC
Frame
56C
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Bearings
Ball
Hz
60/50 Hz
Standards
CSA Certified, UL Listed
Phase
Three
Motor Shaft Rotation
CW/CCW
Ins. Class
B
Motor Mounting Type
C-Face, Rigid Base
Motor Thermal Protection
Auto
Max. Ambient Temp.
40 Degrees C
Motor Service Factor
1
Voltage Compatibility
208V AC, 230V AC, 460V AC
Motor Mounting Position
Horizontal
Motor Application
Hazardous Location
Full Load Amps
1.5 A
RPM Range
1,701-1,800
Nominal Efficiency
75.5 %
Duty Cycle
Continuous
RPM @ 50Hz
1,425 RPM
Includes
Explosion Proof Conduit Box
Service Factor @ 50Hz
1
Motor Shaft Design
Keyed
Motor Frame Material
Steel
Usable @ 208V
Usable at 208V
HP @ 50Hz
1/2 hp
Usable @ 200V
Not Usable at 200V
No. of Speeds
1
Full Load Amps @ 50Hz
1.5 A
Voltage @ 50Hz
190/380V AC
Weight
31 lb
NEMA Design
B
Hazardous Location Division
Division I
Hazardous Location Class
Class I, Class II
Temp. Code
T3B
Hazardous Location Group
Group C, Group D, Group F, Group G

Description

Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 1.5 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60/50 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
