Shop LEESON

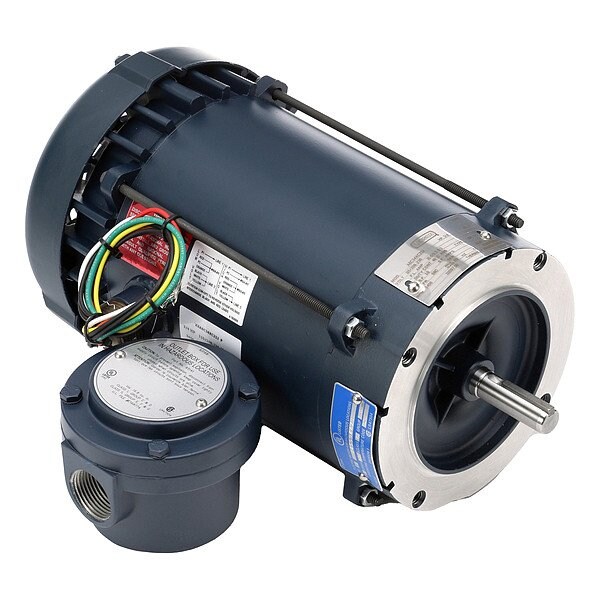

HazardousLocationMotor, 3/4hp, 3450RPM

  • Mfr # 111097.00

  • Zoro # G111930231

product price:
$
821.99
/ea
Free Shipping & Returns

Key Features

HP
3/4 hp
Nameplate RPM
3,450 RPM
Shaft Dia.
5/8 in
Voltage
115/208-230V AC
Frame
56C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
111097.00
Zoro #
G111930231
UPC #
691720009604
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Overall Length
13 15/16 in
Length Less Shaft
12 1/16 in
Lead Length
10 in
Shaft Diameter
5/8 in
Wire Rope Length
13 15/16 in
Frame Size
56C

Details

HP
3/4 hp
Nameplate RPM
3,450 RPM
Item
Hazardous Location Motor
Voltage
115/208-230V AC
Frame
56C
Motor Design
Capacitor-Start
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Bearings
Ball
Ins. Class
B
Hz
60 Hz
Motor Application
Hazardous Location
Motor Thermal Protection
Auto
Max. Ambient Temp.
40 Degrees C
Phase
Single
Full Load Amps
5.3 A
Motor Mounting Type
C-Face
Motor Mounting Position
Horizontal
RPM Range
3,001-3,600
Motor Shaft Rotation
CWSE
Standards
CSA Certified, UL Listed
Motor Service Factor
1
Voltage Compatibility
115V AC, 208V AC, 230V AC
Motor Frame Material
Steel
No. of Speeds
1
Usable @ 208V
Usable at 208V
Includes
Explosion Proof Conduit Box
Usable @ 200V
Not Usable at 200V
Motor Shaft Design
Keyed
Duty Cycle
Continuous
Nominal Efficiency
66 %
Weight
33 lb
NEMA Design
N
Hazardous Location Division
Division I
Temp. Code
T3B
Hazardous Location Class
Class I, Class II
Hazardous Location Group
Group C, Group D, Group F, Group G
Insulation Class
B
Nameplate Service Factor @ 60 Hz
1
Product Type
Hazardous Location Motor
Frame Material
Steel
Motor Enclosure Type
Totally Enclosed Fan Cooled
NEMA Design Class
N
Full Load Current @ 60 Hz
5.3 A
Ambient Temperature - Maximum
40 Degrees C
Mounting Position
Horizontal
Temperature Code
T3B
Efficiency Rating
Standard Efficiency (IE1)
Bearing Type
Ball
Frequency
60 Hz
Shaft Design
Keyed
Number of Speeds
1
Application
Hazardous Location

Description

Hazardous Location Motor, Single Phase, Motor Design Capacitor-Start, 3/4 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 5.3 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
