Shop LEESON

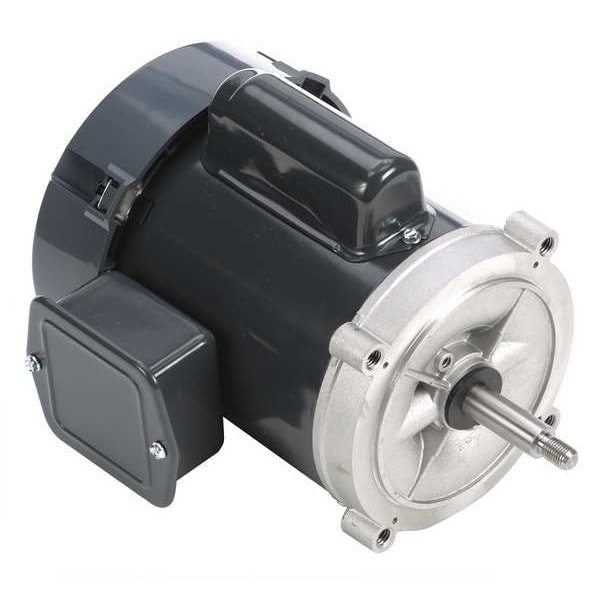

Mtr, Cap St, 1/3 HP, 3450, 115/230V, 56J, TEFC

  • Mfr # 5KC33FN4180X
  • Zoro # G1831487
product price:
$
342.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Thermal Protection
Auto
Hz
60 Hz
Motor Bearings
Ball
Motor Design
Capacitor-Start
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5KC33FN4180X
Zoro #
G1831487
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Length
11 1/16 in
Shaft Length
2 3/8 in
Body Dia.
5.6 in
Shaft Dia.
5/8 in
Length Less Shaft
8 11/16 in
Bolt Circle Dia.
2 15/16 in
Shaft Dia. (In.)
5/8
Bolt Circle Diameter
2 15/16 in
Shaft Diameter
5/8 in
Body Diameter
5.6 in
Frame Size
56J
Wire Rope Length
11 1/16 in
Length
11 1/16 in

Details

Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Thermal Protection
Auto
Hz
60 Hz
Motor Bearings
Ball
Motor Design
Capacitor-Start
RPM Range
3,001-3,600
Duty
Continuous
Max. Ambient Temp.
40 Degrees C
Shaft Material
Stainless Steel
Motor Service Factor
1
Motor Sub Application
Jet Pump
Nameplate RPM
3,450
Standards
CSA, UL Recognized
HP
1/3
Nominal Efficiency
58.9 %
Motor Application
Pump
Item
Jet Pump Motor
Motor Shaft Design
Threaded
Ins. Class
B
Motor Shaft Rotation
CW/CCW
Full Load Amps
5.6/2.8 A
Phase
Single
Frame
56J
Motor Mounting Type
Face
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 230V AC, 240V AC
Voltage
115V AC, 230V AC
Motor Mounting Position
All Angle
Duty Cycle
Continuous
No. of Speeds
1
Usable @ 208V
Not Usable at 208V
Motor Frame Material
Steel
Usable @ 200V
Not Usable at 200V
Weight
14 lb
Number of Speeds
1
Shaft Type
Threaded 7/16-20 UNF-2A
Motor Enclosure Type
Totally Enclosed Fan Cooled
Efficiency Rating
Standard Efficiency (IE1)
Nameplate Service Factor @ 60 Hz
1
Shaft Design
Threaded
Frame Material
Steel
Full Load Current @ 60 Hz
5.6, 2.8 A
Product Type
Pump Motor
Ambient Temperature - Maximum
40 Degrees C
Bearing Type
Ball
Insulation Class
B
Mounting Position
All Angle
Sub Application
Centrifugal Pump, Jet Pump
Application
Pump
Frequency
60 Hz
Number of Wires
8

Description

Jet Pump Motor, Body Dia. 5.6 in, Bolt Circle Dia. 2 15/16 in, Duty Cycle Continuous, Frame 56J, Hz 60 Hz, Full Load Amps 5.6/2.8, HP 1/3, Ins. Class B, Length Less Shaft 8 11/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Frame Material Steel
