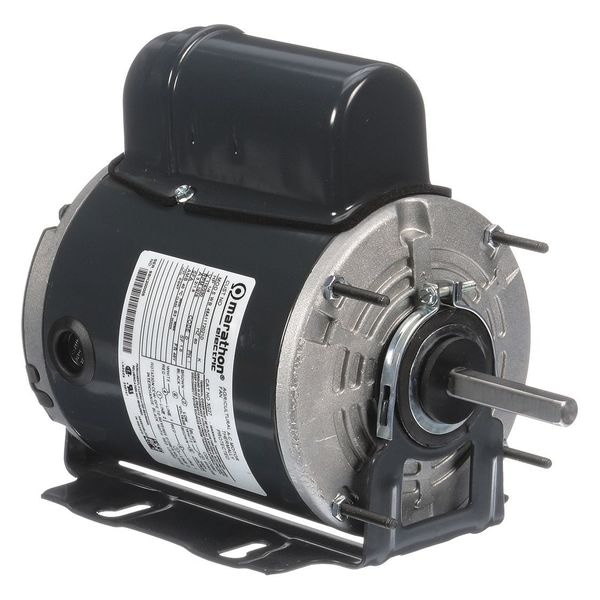

Permanent Split Capacitor General Purpose Farm Duty Motor, 1/4 HP, 48Y Frame, 115/230V AC Voltage
Mfr # 048A11T2021
Zoro # G5765006
product price: $266.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Totally Enclosed Air-Over
HP
1/4
No. of Speeds
1
RPM Range
1,001-1,100
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
048A11T2021
Zoro #
G5765006
UPC #
-
Country of Origin
Mexico
Dimensions
Shaft Dia.
1/2 in
Overall Length
10 1/16 in
Length Less Shaft
7 1/2 in
Shaft Length
2 1/2 in
Stud Size
#10-32
Description
Farm Duty Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 3.2/1.6 A, 48Y Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Cradle Base
