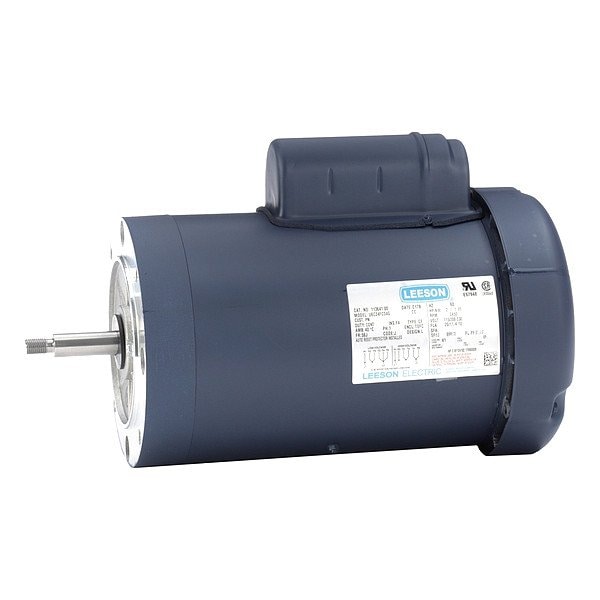

Pool and Spa Pump Motor

  • Mfr # 113641.00

  • Zoro # G511931104

product price:  $665.99
/ea
Free Shipping & Returns

Key Features

Motor Bearings
Ball
Shaft Dia.
5/8 in
Motor Thermal Protection
Auto
Full Load Amps
20/10 A
Hz
60 Hz
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
113641.00
Zoro #
G511931104
UPC #
691720012314
Country of Origin
United States

Dimensions

Shaft Dia.
5/8 in
Bolt Circle Dia.
5 7/8 in
Length Less Shaft
11 5/16 in
Shaft Length
2 1/2 in
Overall Length
13 3/4 in
Lead Length
6 in
Body Dia.
6.5 in
Height
9 in
Frame Size
56J
Shaft Diameter
5/8 in
Body Diameter
6.5 in
Bolt Circle Diameter
5 7/8 in

Details

Item
Pool and Spa Pump Motor
Motor Bearings
Ball
Motor Thermal Protection
Auto
Full Load Amps
20/10 A
Hz
60 Hz
Nominal Efficiency
73 %
Conduit Box Position
F1
HP
2
Standards
CSA Certified, UL Listed
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Mounting Position
Horizontal
Duty Cycle
Continuous
Motor Design
Capacitor-Start
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW
Motor Application
Pump
NEMA Design
L
Voltage
115/230V AC
Usable @ 208V
Not Usable at 208V
Nameplate RPM
3,450
No. of Speeds
1
Shaft Material
Stainless Steel
Ins. Class
F
Phase
Single
Motor Frame Material
Rolled Steel
Weight
44 lb
Usable @ 200V
Not Usable at 200V
Frame
56J
Motor Service Factor
1
Max. Ambient Temp.
104 Degrees F
Conduit Box Location
Exterior
Part Winding Start Capable
No
Overload Relay Required
No
Voltage Compatibility
115/230 V AC
Stator Type
Normal
RPM Range
3,001-3,600
Regreasable Bearings
Permanently Lubricated Bearings
Finish
Enamel
Bearing Protection
Sealed
Inverter Rated
Not Inverter Rated
Number of Wires
6
Motor Sub Application
Pool and Spa Pump
Motor Mounting Type
Round Base
Application
Pump
Frame Material
Steel
Product Type
Pump Motor
Motor Enclosure Type
Totally Enclosed Fan Cooled
Shaft Design
Keyed
Frequency
60 Hz
Number of Speeds
1
Nameplate Service Factor @ 60 Hz
1
Sub Application
Pool and Spa Pump
Frame Finish
Enamel-Coated
Efficiency Rating
Standard Efficiency (IE1)
Insulation Class
F
Bearing Lubrication Type
Permanently Lubricated Bearings
Requires Overload Relay
No
Ambient Temperature - Maximum
40 Degrees C
Bearing Type
Ball
Full Load Current @ 60 Hz
20/10 A
NEMA Design Class
L
Mounting Position
Horizontal

Description

Pool and Spa Pump Motor, Bearing Protection Sealed, Body Dia. 6.5 in, Bolt Circle Dia. 5 7/8 in, CC Number Not Applicable, Conduit Box Location Exterior, Conduit Box Position F1, Diaphragm Type Not Applicable, Duty Cycle Continuous, Finish Enamel, Frame 56J, Hz 60 Hz, Full Load Amps 20/10 A, Height 9 in, HP 2, Includes Not Applicable, Ins. Class F, Inverter Rated Not Inverter Rated, Lead Length 6 in, Length Less Shaft 11 5/16 in, Max. Ambient Temp. 104 Degrees F, Max. SF Amps Not Applicable
