Shop LEESON

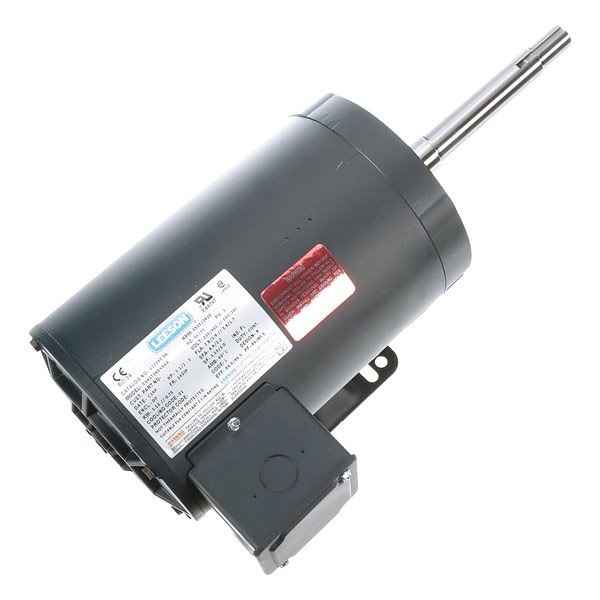

Close-Coupled Pump Motor

  • Mfr # 122095.00

  • Zoro # G811931101

product price:
$
738.99
/ea
Free Shipping & Returns

Key Features

Shaft Dia.
7/8 in
Voltage
230/460V AC
Nominal Efficiency
86.5 %
Hz
50/60 Hz
Motor Shaft Rotation
CCW
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
122095.00
Zoro #
G811931101
UPC #
691720047613
Country of Origin
Mexico

Dimensions

Shaft Dia.
7/8 in
Shaft Length
7 3/8 in
Length Less Shaft
10 5/16 in
Overall Length
17 11/16 in
Shaft Diameter
7/8 in
Frame Size
143JP
Body Diameter
6.5 in

Details

Item
Close-Coupled Pump Motor
Voltage
230/460V AC
Nominal Efficiency
86.5 %
Hz
50/60 Hz
Motor Shaft Rotation
CCW
Nameplate RPM
3,515
Full Load Amps
1.9 A
Motor Application
Pump
Motor Mounting Type
Rigid Base
Phase
Three
Motor Service Factor
1.15
HP
1 1/2 hp
Inverter Rated
Inverter Rated
Ins. Class
F
Motor Bearings
Ball
Motor Thermal Protection
None
Standards
CE, CSA Certified, UL Listed
Motor Enclosure Design
Open Dripproof
Motor Shaft Design
JP Threaded
Voltage Compatibility
230V AC, 460V AC
Motor Design
Three-Phase
Motor Frame Material
Rolled Steel
Motor Sub Application
Close-Coupled Pump
RPM Range
3,000-3,600
Duty
Continuous
Max. Ambient Temp.
40 Degrees C
Frame
143JP
Shaft Design
Threaded
Motor Enclosure Type
Open Drip Proof
Application
Pump
Shaft Thread Type
JP
Frequency
60/50 Hz
Ambient Temperature - Maximum
40 Degrees C
Duty Cycle
Continuous
Number of Wires
9
Full Load Current @ 60 Hz
3.4/1.7 A, 3.8/1.9 A
Nameplate Service Factor @ 60 Hz
1.15
Product Type
Pump Motor
Insulation Class
F
Frame Material
Steel
Bearing Type
Ball

Description

Close-Coupled Pump Motor, Duty Cycle Continuous, Frame 143JP, Hz 50/60 Hz, Full Load Amps 1.9 A, HP 1 1/2 hp, Ins. Class F, Inverter Rated Inverter Rated, Length Less Shaft 10 5/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase, Motor Enclosure Design Open Dripproof, Motor Frame Material Rolled Steel
