  11. PowerToolMotor, 1hp, 3450RPM, 115/230V AC
No Product Image Available

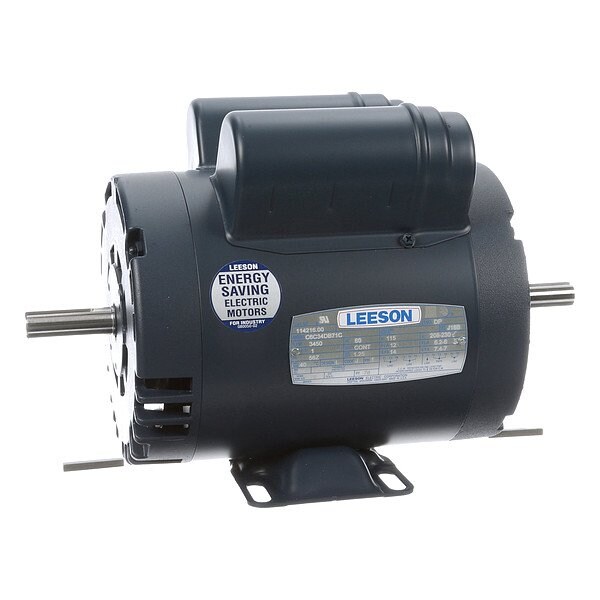

PowerToolMotor, 1hp, 3450RPM, 115/230V AC

  • Mfr # 114216.00

  • Zoro # G611930120

product price: $616.99
/ea
Free Shipping & Returns

Key Features

HP
1 hp
Nameplate RPM
3,450 RPM
Shaft Dia.
5/8 in
Voltage
115/230V AC
Frame
56Z
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
114216.00
Zoro #
G611930120
UPC #
691720013618
Country of Origin
United States

Dimensions

Shaft Dia.
5/8 in
Overall Length
12 3/4 in
Shaft Length
1 7/8 in
Length Less Shaft
10 15/16 in

Details

HP
1 hp
Nameplate RPM
3,450 RPM
Item
Power Tool Motor
Voltage
115/230V AC
Frame
56Z
Motor Design
Capacitor-Start
Motor Enclosure Design
Open Drip Proof
Standards
CSA Certified, UL Listed
Ins. Class
B
Hz
60 Hz
Nominal Efficiency
70 %
RPM Range
3,001-3,600
Motor Thermal Protection
None
Max. Ambient Temp.
40 Degrees C
Motor Shaft Rotation
CW/CCW
Usable @ 200V
Not Usable at 200V
Full Load Amps
6.0 A
Motor Mounting Type
Rigid Base
Conduit Box Position
F1
Motor Shaft Design
Keyed
Motor Frame Material
Steel
Motor Service Factor
1.25
Usable @ 208V
Not Usable at 208V
Phase
Single
Motor Mounting Position
Horizontal
Duty Cycle
Continuous
Weight
30 lb
Motor Bearings
Ball
No. of Speeds
1
Motor Application
Power Tools
Voltage Compatibility
115V AC, 230V AC
Brake Rating
6 ft-lb
On/Off Switch
On/Off Switch Not Included
Number of Shafts
2

Description

Power Tool Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, 115/230V AC Voltage, Full Load Amps 6.0 A, 56Z Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.25, Motor Thermal Protection None, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Rigid Base
