Shop LEESON

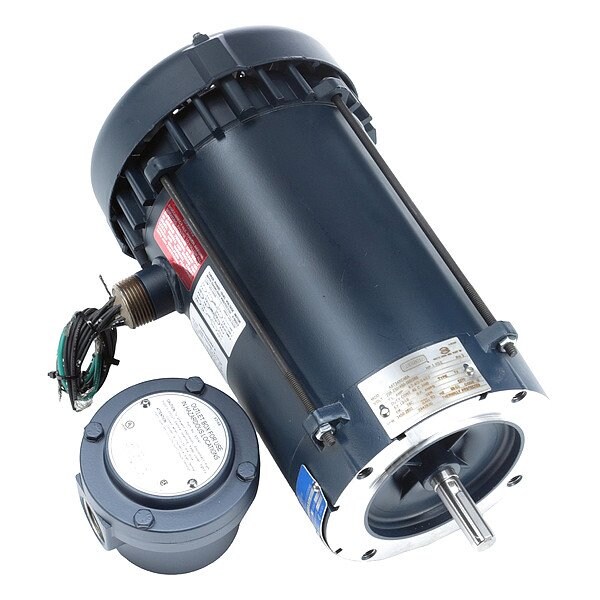

HazardousLocationMotor, 1-1/2hp, 3450RPM

  • Mfr # 119428.00

  • Zoro # G911930950

product price:
$
1,083.99
/ea
Free Shipping & Returns

Key Features

HP
1 1/2 hp
Nameplate RPM
3,450 RPM
Shaft Dia.
5/8 in
Voltage
208-230/460V AC
Frame
56C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
119428.00
Zoro #
G911930950
UPC #
691720046951
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Overall Length
14 15/16 in
Length Less Shaft
13 1/16 in
Shaft Length
1 7/8 in
Lead Length
9 in
Shaft Diameter
5/8 in
Wire Rope Length
14 15/16 in
Frame Size
56C

Details

HP
1 1/2 hp
Nameplate RPM
3,450 RPM
Item
Hazardous Location Motor
Voltage
208-230/460V AC
Frame
56C
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Service Factor
1
Max. Ambient Temp.
40 Degrees C
Full Load Amps
2.0 A
Hz
60/50 Hz
Voltage Compatibility
208V AC, 230V AC, 460V AC
Motor Mounting Position
Horizontal
Motor Bearings
Ball
Motor Shaft Rotation
CW/CCW
Motor Mounting Type
C-Face
Standards
CSA Certified, UL Listed
Motor Thermal Protection
Auto
Phase
Three
RPM Range
3,001-3,600
Motor Application
Hazardous Location
Ins. Class
B
No. of Speeds
1
HP @ 50Hz
1 hp
RPM @ 50Hz
2,850 RPM
Voltage @ 50Hz
190/380V AC
Service Factor @ 50Hz
1
Full Load Amps @ 50Hz
2.0 A
Motor Frame Material
Steel
Usable @ 208V
Usable at 208V
Nominal Efficiency
84 %
Usable @ 200V
Not Usable at 200V
Motor Shaft Design
Keyed
Duty Cycle
Continuous
Includes
Explosion Proof Conduit Box
Weight
44 lb
Temp. Code
T3B
Hazardous Location Class
Class I, Class II
Hazardous Location Division
Division I
NEMA Design
B
Hazardous Location Group
Group C, Group D, Group F, Group G
Full Load Current @ 50 Hz
2.0 A
Application
Hazardous Location
Ambient Temperature - Maximum
40 Degrees C
Insulation Class
B
Nameplate Service Factor @ 60 Hz
1
Frame Material
Steel
Mounting Position
Horizontal
Bearing Type
Ball
Nameplate RPM @ 50 Hz
2,850 RPM
Full Load Current @ 60 Hz
2.0 A
Motor Enclosure Type
Totally Enclosed Fan Cooled
NEMA Design Class
B
Temperature Code
T3B
Number of Speeds
1
Efficiency Rating
Premium Efficiency (IE3)
Frequency
60/50 Hz
Shaft Design
Keyed
Nameplate Service Factor @ 50 Hz
1
Product Type
Hazardous Location Motor
Nameplate Horsepower @ 50 Hz
1 hp

Description

Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 2.0 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60/50 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
