Leeson

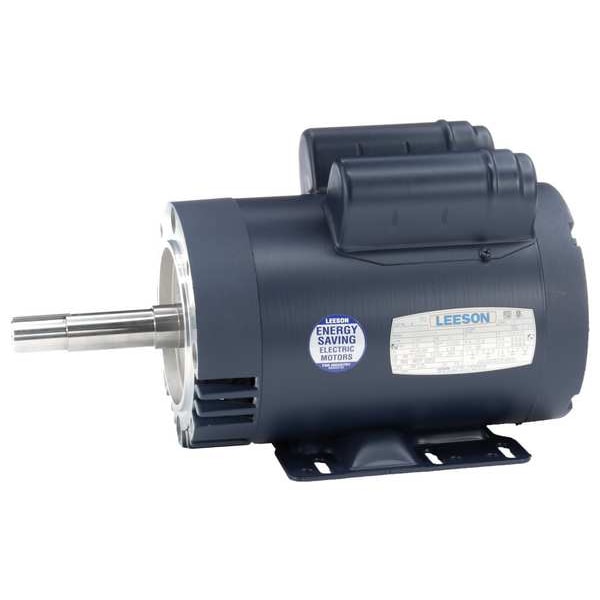

Pump Motor, Capacitor-Start Design

product price: $479.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Height 8 1/8 in
  • Motor Shaft Rotation CCWSE
  • Hz 60 Hz
  • Usable @ 200V No
  • Overall Length 14 15/16 in
See all product information

Product Information

Dimensions

Height 8 1/8 in
Overall Length 14 15/16 in
Bolt Circle Dia. 5 7/8 in
Shaft Dia. 7/8 in
Shaft Length 4 1/4 in
Body Dia. 6.5 in
Length Less Shaft 10 11/16 in

Details

Item Close-Coupled Pump Motor
Motor Shaft Rotation CCWSE
Hz 60 Hz
Usable @ 200V No
NEMA Design None
Usable @ 208V Yes
Motor Sub Application Close-Coupled Pump
Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Includes Drip-Cover Kits
Motor Mounting Type Rigid Base
Motor Mounting Position Horizontal
Frame 145JM
RPM Range 1,701-1,800
Motor Application Pump
Nominal Efficiency 79 %
Motor Frame Material Steel
Ins. Class B
Motor Thermal Protection None
No. of Speeds 1
Motor Enclosure Design Open Dripproof
Motor Bearings Ball
Full Load Amps 17.2/8.8-8.6
Nameplate RPM 1,740
Motor Design Capacitor-Start
HP 1 1/2
Conduit Box Location Exterior
Weight 48 lb
Phase Single
Duty Cycle Continuous
Voltage 115/208-230V AC
Max. Ambient Temp. 104 Degrees F
Motor Service Factor 1.2
Motor Shaft Design Keyed
Conduit Box Position F1
Standards CSA Certified, UL Recognized
Bearing Protection Shaft Shields

Description

Close-Coupled Pump Motor, Bearing Protection Shaft Shields, Body Dia. 6.5 in, Bolt Circle Dia. 5 7/8 in, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 145JM, Hz 60 Hz, Full Load Amps 17.2/8.8-8.6, Height 8 1/8 in, HP 1 1/2, Includes Drip-Cover Kits, Ins. Class B, Length Less Shaft 10 11/16 in, Max. Ambient Temp. 104 Degrees F, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start, Motor Efficiency Group Standard Efficient
