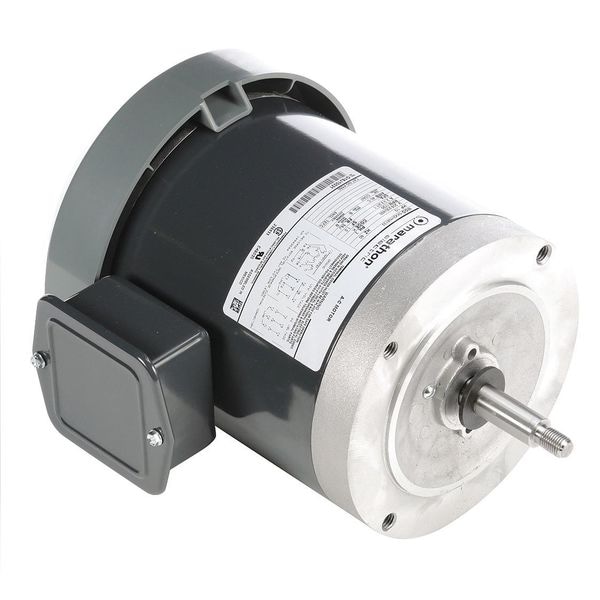

Mtr, 3 Ph, 1/2hp, 1725, 208-230/460, 56J, TEFC

  • Mfr # 5K42HN4133
  • Zoro # G1506802
product price:
$
466.99
/ea
Free Shipping & Returns

Key Features

Nameplate RPM
1,725
Motor Shaft Design
Threaded
Shaft Dia.
5/8 in
Motor Thermal Protection
None
Body Dia.
6.4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5K42HN4133
Zoro #
G1506802
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Body Dia.
6.4 in
Overall Length
11 1/2 in
Shaft Length
2 3/8 in
Height
7 9/16 in
Length Less Shaft
9 1/8 in
Bolt Circle Dia.
4 1/2 in
Bolt Circle Diameter
4 1/2 in
Shaft Diameter
5/8 in
Body Diameter
6.4 in
Frame Size
56J
Wire Rope Length
11 1/2 in
Length
11 1/2 in

Details

Nameplate RPM
1,725
Motor Shaft Design
Threaded
Motor Thermal Protection
None
Shaft Material
Stainless Steel
RPM Range
1,701-1,800
Motor Service Factor
1
Frame
56J
Item
Jet Pump Motor
Motor Shaft Rotation
CW/CCW
Duty
Continuous
Motor Mounting Type
Face
Motor Mounting Position
All Angle
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 230V AC, 460V AC, 460V AC
Motor Application
Pump
Motor Bearings
Ball
Voltage
208V AC to 230V AC, 460V AC
Hz
60 Hz
Nominal Efficiency
78.7 %
Ins. Class
B
Phase
Three
Max. Ambient Temp.
40 Degrees C
Full Load Amps
2.3-2.2/1.10 A
Motor Design
Three-Phase
HP
1/2
Motor Sub Application
Jet Pump
Includes
Shaft Slinger and Drip Cover
Standards
CSA, UL Recognized
Weight
22 lb
NEMA Design
B
Starter Required
No
Usable @ 208V
Usable at 208V
Conduit Box Position
F1
No. of Speeds
1
Usable @ 200V
Not Usable at 200V
Motor Frame Material
Steel
Duty Cycle
Continuous
Number of Speeds
1
Shaft Type
Threaded 7/16-20 UNF-2A
Nameplate Service Factor @ 60 Hz
1
Product Type
Pump Motor
Efficiency Rating
Standard Efficiency (IE1)
Frame Material
Steel
Full Load Current @ 60 Hz
2.3-2.2/1.1 A
Number of Wires
9
Insulation Class
B
Sub Application
Centrifugal Pump, Jet Pump
NEMA Design Class
B
Frequency
60 Hz
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Threaded
Mounting Position
All Angle
Application
Pump
Motor Enclosure Type
Totally Enclosed Fan Cooled
Bearing Type
Ball

Description

Jet Pump Motor, Body Dia. 6.4 in, Bolt Circle Dia. 4 1/2 in, Conduit Box Position F1, Duty Cycle Continuous, Frame 56J, Hz 60 Hz, Full Load Amps 2.3-2.2/1.10, Height 7 9/16 in, HP 1/2, Includes Shaft Slinger and Drip Cover, Ins. Class B, Length Less Shaft 9 1/8 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Frame Material Steel
