Shop LEESON

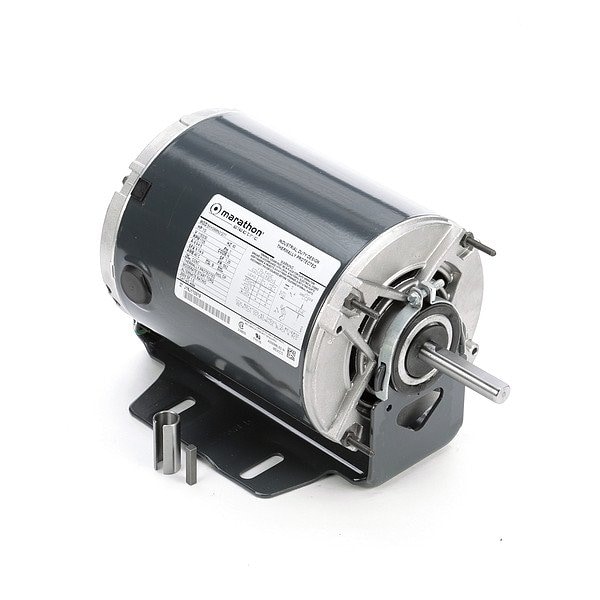

Split-Phase Fan and Blower Motor, 1/2 HP, 56Z Frame, 115/230V AC Voltage, 1,725 Nameplate RPM

  • Mfr # 5KH36MN3127T
  • Zoro # G309977598
product price:
$
316.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
HP
1/2
No. of Speeds
1
RPM Range
0-1,725
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
5KH36MN3127T
Zoro #
G309977598
UPC #
-
Country of Origin
Mexico
Item
Fan and Blower Motor
Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
HP
1/2
No. of Speeds
1
RPM Range
0-1,725
Nameplate RPM
1,725
Voltage
115V AC, 230V AC
Frame
56Z
Motor Mounting Type
Resilient Base
Motor Thermal Protection
Auto
Motor Service Factor
1.25
Voltage Compatibility
115V AC, 230V AC
Phase
Single
Motor Application
Fan and Blower
Motor Sub Application
General Purpose
Motor Shaft Rotation
CW/CCW
Max. Ambient Temp.
104 Degrees F
Motor Frame Material
Steel
Motor Mounting Position
Vertical/Horizontal
Standards
CSA
Hz
60 Hz
Nominal Efficiency
57.6 %
Full Load Amps
4.5, 8.9 A
Ins. Class
B
Motor Shaft Design
Keyed
Motor Bearings
Ball
Duty Cycle
Continuous
Weight
18 lb
Usable @ 208V
Yes
Product Type
Fan and Blower Motor
Application
Fan/Blower
Bearing Type
Ball
Ambient Temperature - Maximum
40 Degrees C
Insulation Class
B
Duty
Continuous
Number of Speeds
1
Frequency
60 Hz
Mounting Position
All Angle
Shaft Design
Keyed
Nameplate Service Factor @ 60 Hz
1.25
Drive Type
Belt Drive
Full Load Current @ 60 Hz
8.9/4.5 A
Frame Material
Steel
Motor Enclosure Type
Open Drip Proof

Description

Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, 8.9/4.5 A Full Load Amps, 56Z Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Motor Service Factor 1.25, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Frame Material Steel
