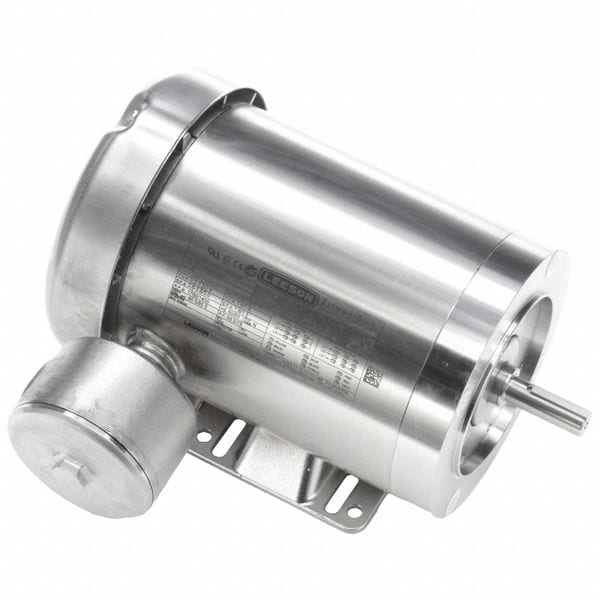

Three-Phase Washdown Motor, 1 hp HP, 56C Frame, 230/460V AC Voltage, 1,760 RPM Nameplate RPM
Mfr # 119511.00
Zoro # G707353888
product price:Â $1,841.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Three-Phase
Phase
Three
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
56C
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
119511.00
Zoro #
G707353888
UPC #
691720053287
Country of Origin
United States
Dimensions
Shaft Dia.
5/8 in
Bolt Circle Dia.
5 7/8 in
Overall Length
11 15/16 in
Shaft Length
1 7/8 in
Description
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,760 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.2/1.6 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type C-Face
