Leeson

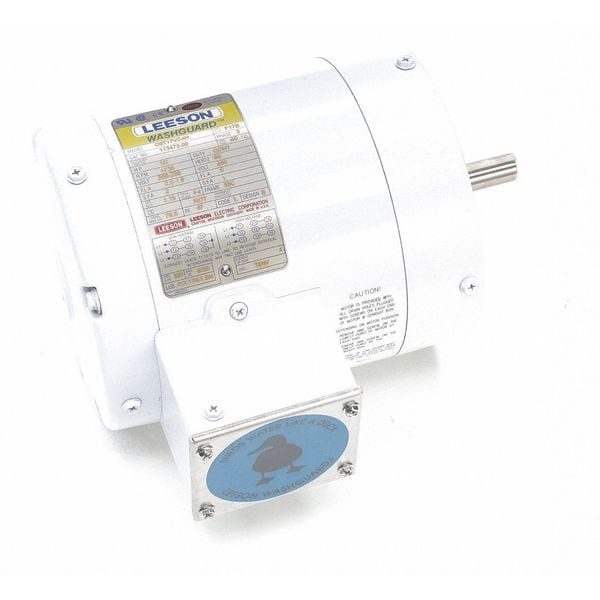

Washdown Motor, 1/2 HP, 3-Phase, 56C Frame

product price: $443.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Design 3-Phase
  • Phase Three
  • HP 1/2
  • RPM Range 1,701-1,800
  • Voltage 208-230/460V AC
See all product information

Product Information

Dimensions

Length Less Shaft 8 1/8 in
Shaft Length 1 7/8 in
Shaft Dia. 5/8 in
Body Dia. 6.5 in
Overall Length 10 1/16 in
Manufacturers Warranty Length 1 yr
Bolt Circle Dia. 5 7/8 in

Details

Item Washdown Motor
Motor Design 3-Phase
Phase Three
HP 1/2
RPM Range 1,701-1,800
Voltage 208-230/460V AC
Frame 56C
Motor Frame Material Steel
Motor Thermal Protection None
Motor Enclosure Design Totally Enclosed Nonventilated
Motor Shaft Rotation CCW, CW
Nominal Efficiency 78.5 %
Motor Bearings Ball
Motor Service Factor 1.15
Motor Mounting Type Face
Hz 60 Hz
Ins. Class F
Frame Material Rolled steel
Full Load Amps 1.8 A
Drain Plugs ok
Application General Purpose
Motor Application Washdown
Nameplate RPM 1,725
Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Max. Ambient Temp. 40 Degrees C
Standards BISSC, CE, CSA, UL
NEMA Design B
Motor Mounting Position Horizontal
Conduit Box Location Exterior
Removable Base No
Duty Cycle Continuous
Usable @ 200V No
No. of Speeds 1
Usable @ 208V Yes
Finish Epoxy
Weight 25 lb

Description

Washdown Motor, Three Phase, Motor Design 3-Phase, 1/2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 1.8 A, 56C Frame, Usable @ 208V Yes, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CCW, CW, Motor Enclosure Design Totally Enclosed Nonventilated, Motor Mounting Type Face
