  11. Washdown Motor, 1HP, Face Mounting, 60/50Hz

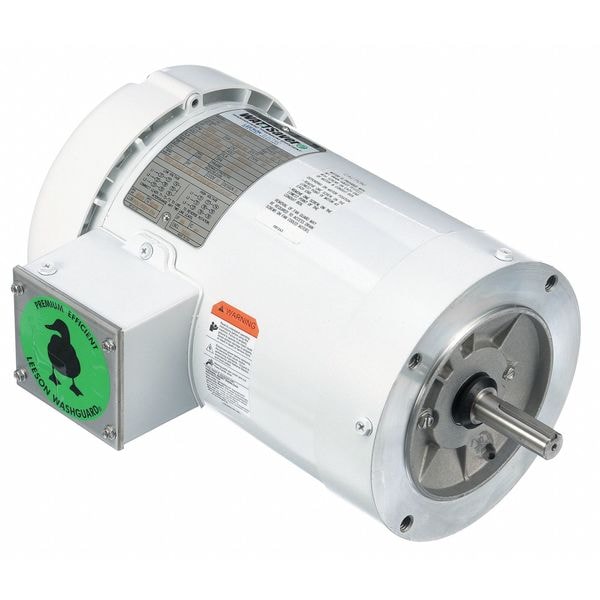

Leeson Washdown Motor, 1HP, Face Mounting, 60/50Hz 119468.00 - main

Washdown Motor, 1HP, Face Mounting, 60/50Hz

  • Mfr # 119468.00

  • Zoro # G4702428

product price: $724.00
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
1,701-1,800
Voltage
230/460V AC
Motor Frame Material
Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
119468.00
Zoro #
G4702428
UPC #
-
Country of Origin
United States

Dimensions

Shaft Length
2 1/4 in
Length Less Shaft
10 15/16 in
Shaft Dia.
5/8 in
Body Dia.
7.38 in
Overall Length
13 3/8 in
Manufacturers Warranty Length
1 yr
Bolt Circle Dia.
5 7/8 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
1 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
56C
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
CC Number
CC005A
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Nameplate RPM
1,760 RPM
Full Load Amps
3.2/1.6 A
Hz
60/50 Hz
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Max. Ambient Temp.
40 Degrees C
Motor Service Factor
1.15
Nominal Efficiency
85.5 %
Application
General Purpose
Ins. Class
F
Motor Mounting Type
C-Face
Frame Material
Rolled steel
Motor Bearings
Ball
Standards
BISSC, CE, CSA, UL
Motor Mounting Position
Horizontal
NEMA Design
B
Green Certification or Other Recognition
NEMA Premium(R) Rated
Motor Shaft Design
Keyed
Usable @ 208V
Usable at 208V
Duty Cycle
Continuous
Conduit Box Location
Exterior
Finish
Epoxy-Coated
Full Load Amps @ 50Hz
3.2-3.2/1.6 A
Voltage @ 50Hz
460V AC
Removable Base
No
Usable @ 200V
Not Usable at 200V
Weight
35 lb
No. of Speeds
1
Endshield Material
Aluminum
Series
Washguard
Conduit Box Position
F1

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,760 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.2/1.6 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
