  11. WashdownMotor, 1-1/2hp, 1750RPM, 230/460VAC

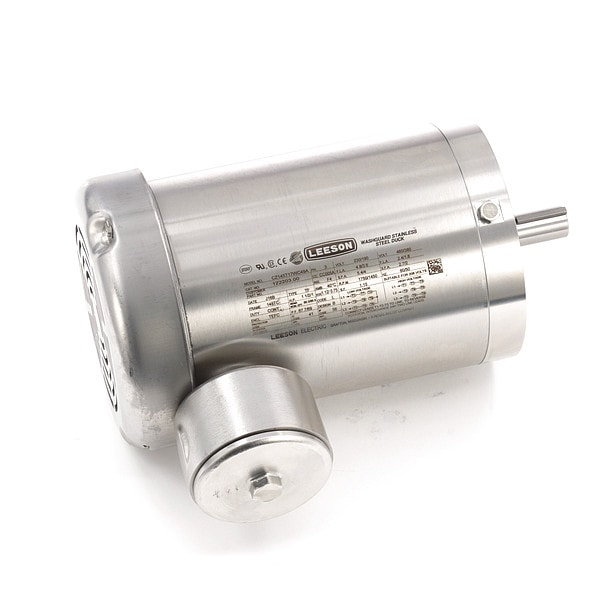

Leeson WashdownMotor, 1-1/2hp, 1750RPM, 230/460VAC 122203.00 - main

WashdownMotor, 1-1/2hp, 1750RPM, 230/460VAC

  • Mfr # 122203.00

  • Zoro # G500722980

product price: $1,944.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
145TC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
122203.00
Zoro #
G500722980
UPC #
691720053317
Country of Origin
United States

Dimensions

Body Dia.
6.5 in
Overall Length
12 3/4 in
Length Less Shaft
10 5/8 in
Shaft Dia.
7/8 in
Manufacturers Warranty Length
1 yr
Bolt Circle Dia.
5 7/8 in
Shaft Length
2 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
1 1/2 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
145TC
Motor Frame Material
Stainless Steel
Motor Thermal Protection
Manual
Motor Enclosure Design
Totally Enclosed Fan Cooled
No. of Speeds
1
Hz
60/50 Hz
Voltage @ 50Hz
230/460V AC
Duty Cycle
Continuous
Service Factor @ 50Hz
1.2
Standards
CE, CSA Certified, UL Recognized
Motor Mounting Type
C-Face
Max. Ambient Temp.
40 Degrees C
Endshield Material
Stainless Steel
Inverter Rated
Inverter Rated
Full Load Amps
4.8/2.4 A
Removable Base
Yes
Motor Shaft Rotation
CW/CCW
Full Load Amps @ 50Hz
4.8/2.4 A
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Bearing Protection
Shaft Shields
Nominal Efficiency
86.5 %
Motor Service Factor
1.2
Weight
52 lb
RPM @ 50Hz
1,750 RPM
Usable @ 200V
Not Usable at 200V
Nameplate RPM
1,750 RPM
Motor Application
General Purpose
Conduit Box Location
Exterior
Motor Mounting Position
Horizontal
Finish
Epoxy-Coated
Motor Shaft Design
Keyed
Usable @ 208V
Not Usable at 208V
Drain Plugs
(1) in Conduit Box
Motor Bearings
Ball
Shaft Material
Stainless Steel
NEMA Design
B
Ins. Class
F
HP @ 50Hz
1 1/2 hp
Conduit Box Position
F1

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,750 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 4.8/2.4 A, 145TC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.2, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base Yes, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
